SOMERVILLE

SHIVE CONTENT ANALYZER

CODE: P.109.XXX

USAGE

To determine shives and other particles in pulp suspensions.

DEVICE DESCRIPTION

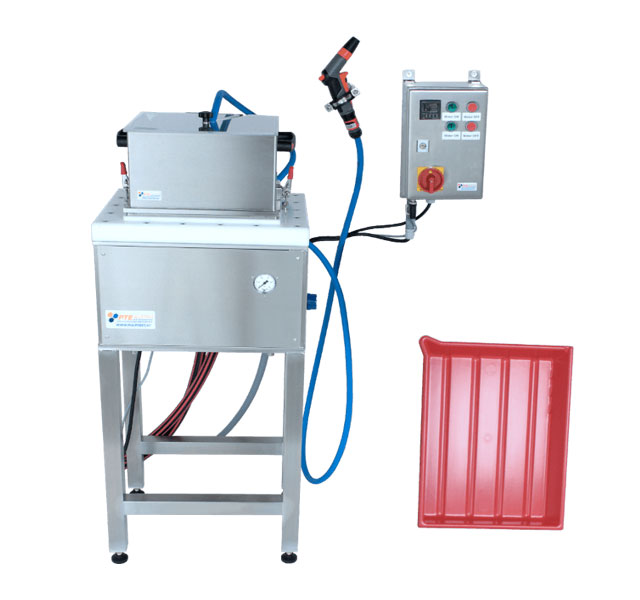

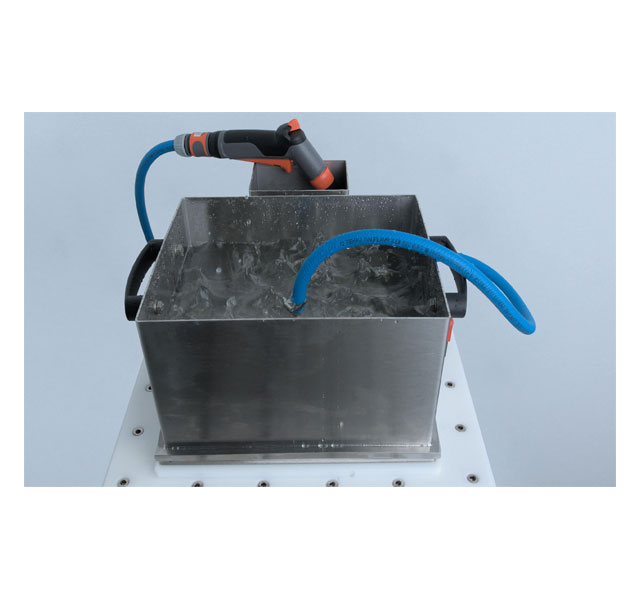

The Somerville shive content analyzer is built upon a robust stainless steel frame, which holds the membrane chamber and the container. The control box can be mounted to a wall. The wash chamber and the container are separated by an exchangeable slot plate, which holds one calibrated ring nozzle with twelve horizontal openings right in the center of the slot plate. The attached overflow container regulates the water level in the container. The slot plate can be easily removed due to quick fasteners

FEATURES

*top quality and manufacturing

* sturdy construction made of corrosion resistant materials

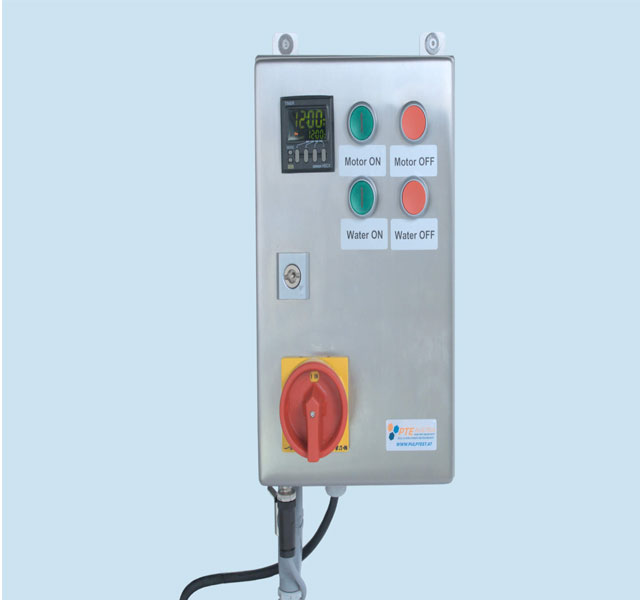

* control box prepared for wall mounting

* calibrated ring nozzle (works with 8.6 l/min at a pressure of 123.6 kPa)

* drive motor protection class IP55 built into the stand, drives the slot screen via an eccentric mechanism at 690 – 700 rpm

* device is delivered with one slot plate (see available slot plates)
