SHEET FORMER _SEMI AUTOMATIC
For the production of standardized laboratory hand sheets according to TAPPI.
Full Description
TAPPI
CODE: P.502.159.SEMI
USAGE
For the production of standardized laboratory hand sheets according to TAPPI.
DEVICE DESCRIPTION

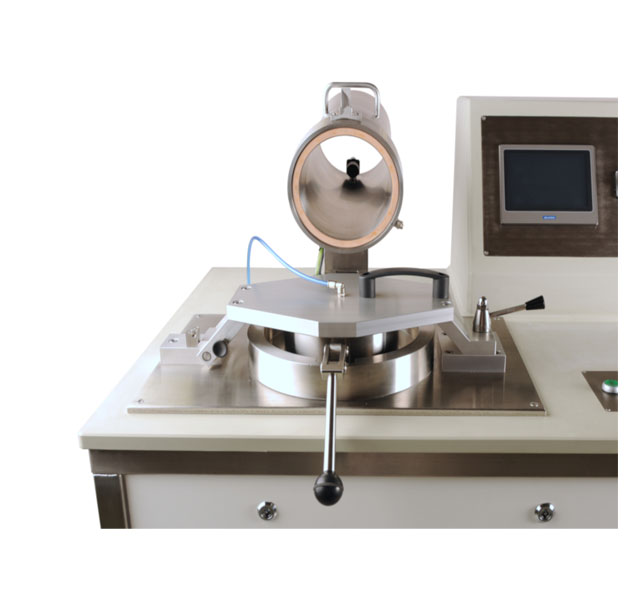

The semi-automatic TAPPI sheet former is specially designed for easy and practical production of laboratory hand sheets with a diameter of 159 mm (other sizes available on request). The former column and couching device are located on the left side of the waterproof worktop. Next to it is an easily accessible switch panel for quick changeover to manual operation. The control module above includes an easy-to-use touch display with pre-installed PTE Austria software, easy-to-read pressure displays and the easily accessible emergency/ ON/OFF switch. Via the program the sheet forming process is controlled automatically and even the couching process can be performed ergonomically with the special couching device.
FEATURES
- highest quality materials and manufacturing
- only corrosion free material
- easy operation via touchscreen
- semi-automatic process
- gravitational dewatering
- pneumatic swirling
- pneumatic couching
- switching to manual mode possible at all times
Models
| Code | Model |
|---|---|
| P.502.159.SEMI | TAPPI semi-automatic built-in stainless steel frame |
| P.502.159.BOX | TAPPI semi-automatic with wall box control panel to install into already existing laboratory desk |
Applicable standards
TAPPI T205; ISO 5269/1; SCAN C26
