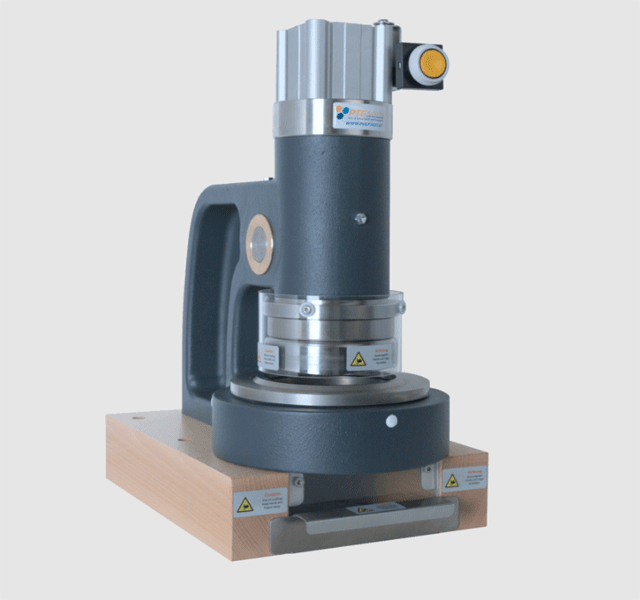

SAMPLE PUNCH PNEUMATIC
For the fast and practical pneumatic preparation of paper or board samples.
Full Description
CODE: P.105.XXX and P.106.XXX
USAGE
For the fast and practical pneumatic preparation of paper or board samples.
DEVICE DESCRIPTION

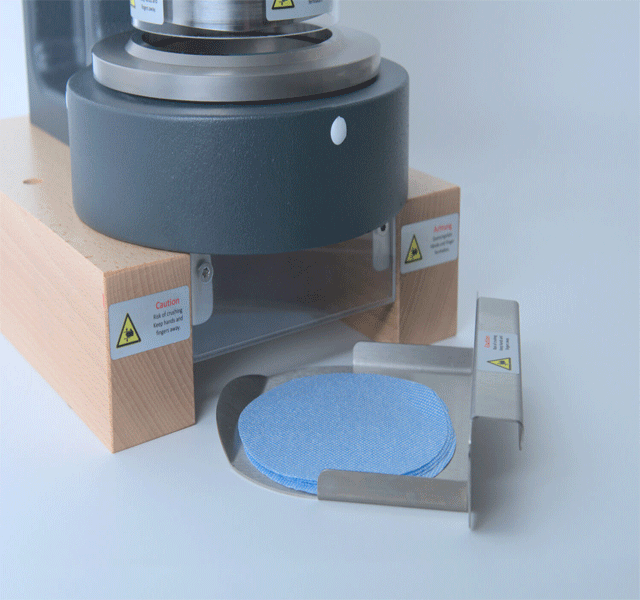

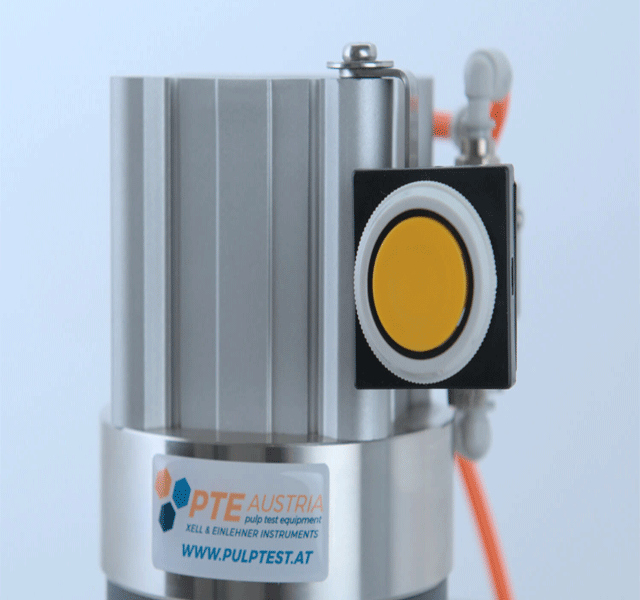

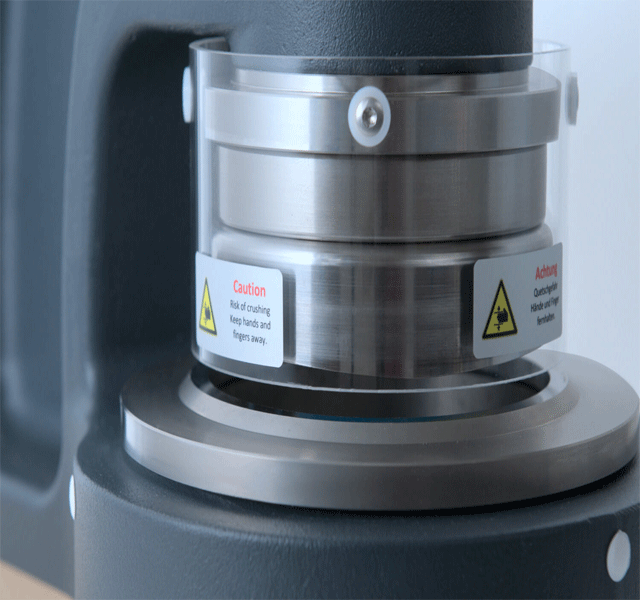

Sturdy sample punch for easy and rapid preparation of square or circular test pieces, either used for grammage determination or as sample preparation for bending stiffness, Elmendorf tear or for twin folding tests. The Grammage ranges from 30 up to 1 000 g/m² and thickness up to 4 mm. The device is equipped with a hand button and protection glass to ensure safe operation.
CONNECTIONS
| Air | 6 mm diameter pneumatic tube for compressed air connection (400 – 600 kPa). |
Models
| Code | Method | Related Standard | Sample Size |
|---|---|---|---|
| P.105.100 | Elmendorf | ISO 1974 | 50 x 63 mm |
| P.105.110 | Elmendorf | ISO 1974 | 76 x 63 mm |
| P.105.120 | Elmendorf | TAPPI T414 | 53 x 63 mm |
| P.105.130 | Elmendorf | n/a | 63 x 63 mm |
| P.105.140 | Bending Stiffness | ISO 2493 | 38 x 80 mm |
| P.105.150 | Bending Stiffness | TAPPI T556 | 38 x 76 mm |
| P.105.160 | Twin Folding | ISO 5626 | 100 x 15 mm |
| P.106.005 | Grammage | n/a | 4.99 cm² (round) |
| P.106.050 | Grammage | n/a | 50 cm² (round) |
| P.106.100 | Grammage | ISO 536 | 100 cm² (round) |
| P.106.D15 | Grammage | n/a | 15 mm (diameter) |
