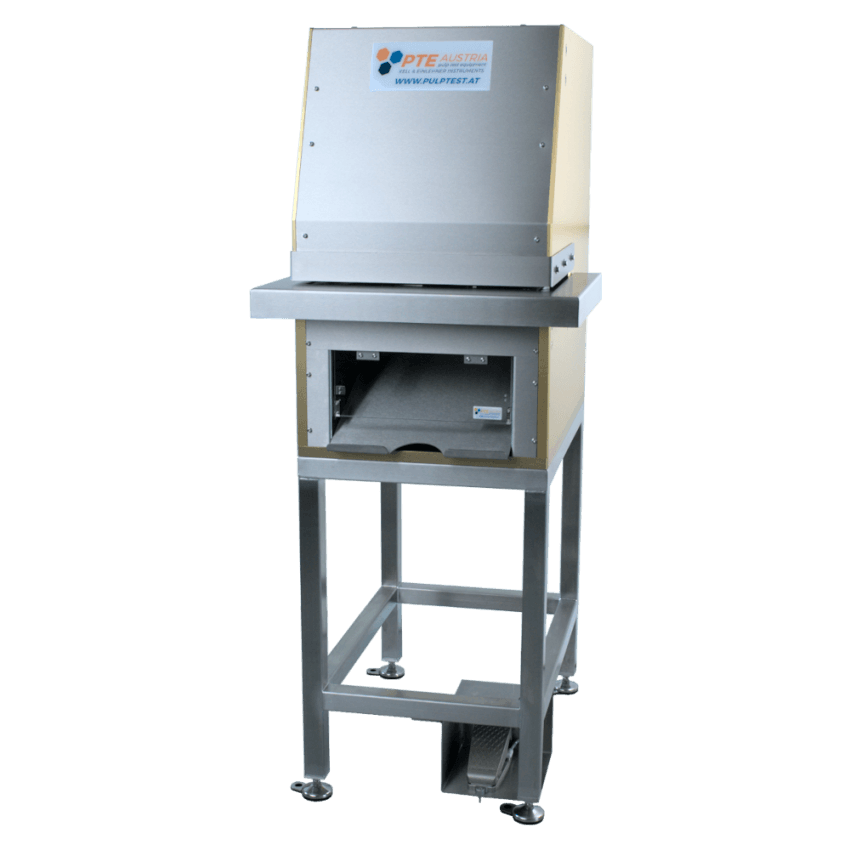

SAMPLE PUNCH LARGE DIMENSIONS PNEUMATIC
For fast and practical pneumatic preparation of large dimension samples or A4 (210 x 297 mm) samples.
Full Description
CODE: P.110.XXX
USAGE
For fast and practical pneumatic preparation of large dimension samples or A4 (210 x 297 mm) samples.
DEVICE DESCRIPTION

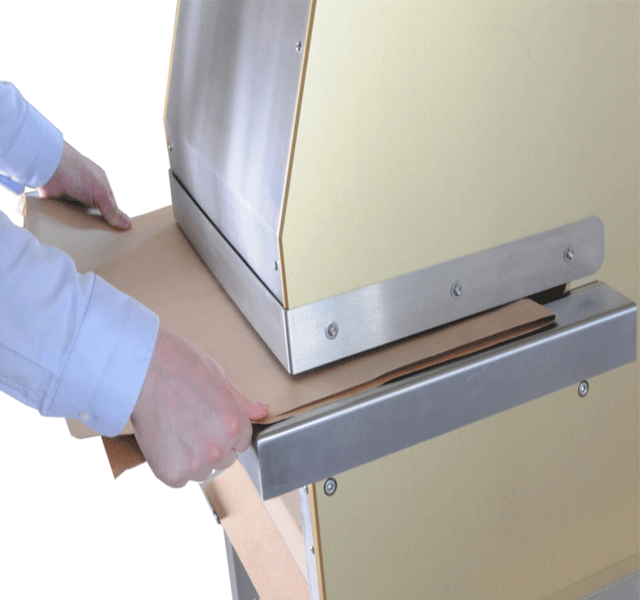

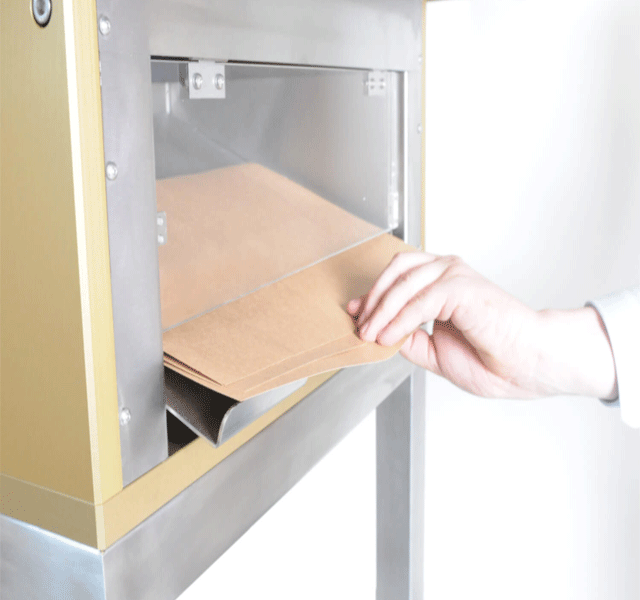

This robust and sturdy sample punch is ideal for the pneumatic punching of A4 samples or samples of large dimensions. The material is put between the safety and stainless steel guide. By using the foot switch the sample is cut out in the desired format via the especially designed punch tools. After the punching, the sample falls into the collecting tray and can be taken out easily. Safety switches and guides prevent the punch from being operated before the safety switch closes.
FEATURES
- top-quality in materials and manufacturing
- premium cutting knives
- security protection
- stainless steel guide

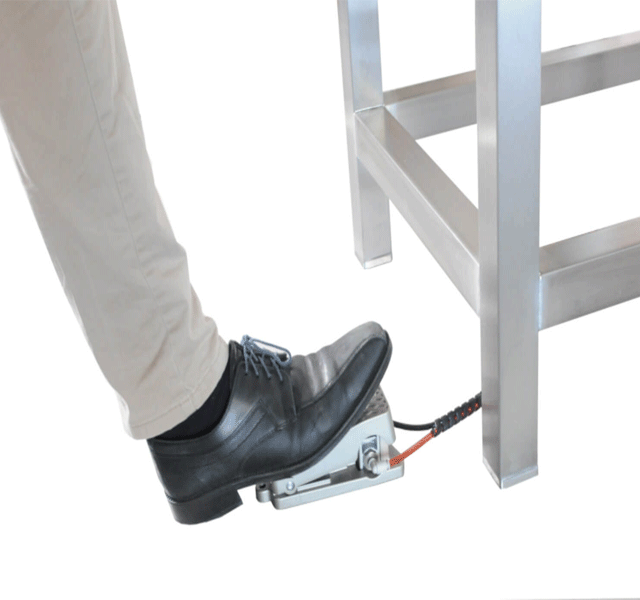

- easy & ergonomic operation via foot switch
- sample collecting tray
- several samples (depending on the thickness) can be punched at the same time
SPECIFICATIONS
| sample thickness | up to 7.5 mm (depending on the material) |
CONNECTIONS

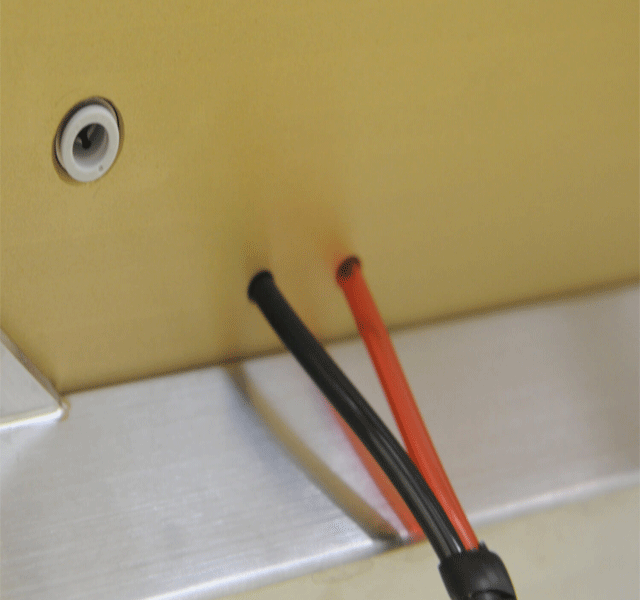

| Air | 8 bar/800 kPa for Ø8 mm compressed air tube |
ACCESSORIES
| Code | Description |
|---|---|
| P.110.Z1 | tambour roll holder |
Models
| Code | Sample size |
|---|---|
| P.110.A4 | DIN A4 (210 x 297 mm) |
| P.110.200 | 250 x 200 mm |
| P.110.400 | 250 x 400 mm |
