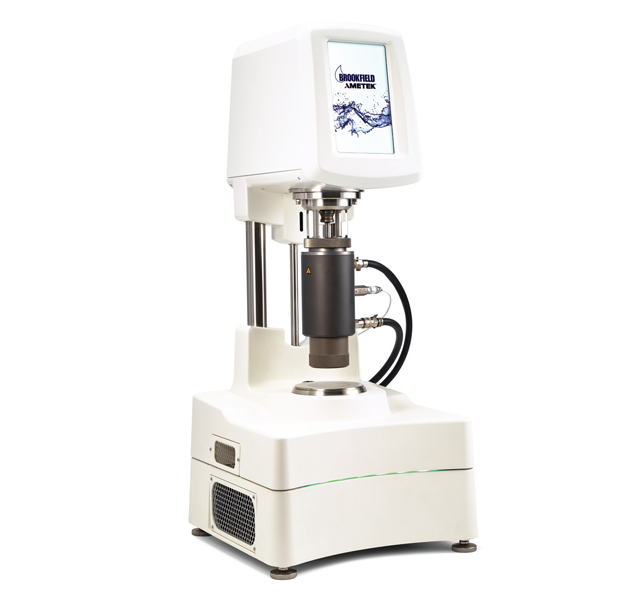

RSO Rheometer
The Quick Test functionality of the Brookfield RSO Rheometer allows testing within minutes.
Full Description
The Quick Test functionality of the Brookfield RSO Rheometer allows testing within minutes.
The RSO Stand-alone mode with easy-to-use interface makes it simple for QC Users, it can also help in Viscoelastic measurements by providing R&D users with advanced testing capabilities. RSO Flexibility allows cone/plate and concentric cylinder in a single instrument.
FEATURES AND BENEFITS
- Controlled shear stress/shear rate operation makes it easy to study static yield to flow curve and visco- elastic behaviour.
- User-friendly Touch Screen and graphical display for stand-alone operation.
- Quick Connect Coupling System for easy spindle attachment.
- Instrument flexibility allows for cone/plate and concentric cylinder in one.
- Very Small Sample Size permits rapid test set up and clean up.
- Spindle Barcode for auto spindle recognition.
- Standalone simplicity for QC users.
- Automatic Gap Setting for quick and easy gap setting.
- Rapid Temperature Control of plate with Peltier option for quick profiling of viscosity vs. temperature.
- Optional Rheo3000 Software allows for PC control and data acquisition/analysis of multiple test files.
OPTIONAL ACCESSORIES
- Choice of cone or plate spindle geometries (at least one is required)
- Rheo3000 Software
- Viscosity Standards
- Choice of Thermal Barrier
- Teflon (0° – 200°C)
- Stainless Steel (0° – 200°C+)
- Coaxial Cylinder
- Bob (spindle) and Chamber
- FTKY3 Water Jacket for Temperature Control
- Temperature Bath
SPECIFICATIONS
| Min Torque | 5μNm |
| Max Torque | 100mNm |
| Resolution of Torque | 0.02μNm |
| Bearing | Air bearing |
| Resolution of deformation | 1.25μrad |
| Min speed | 0.001rpm |
| Max speed | 1500rpm |
| Min frequency | 0.001 Hz / 0.006 rad/s |
| Max frequency | 20 Hz / 126 rad/s |
| Measurement system | Cylinder/Cone Plate |
| Temp control | Peltier or bath option |
| Min Temp. | 0° C |
| Max Temp | 180° C |
| Size W×H×D | 360×600×340mm |
| Weight | 31kg |
What's Included
- Instrument with Peltier temperature control for sample plate
- Convenience Package, which includes cleaning cloth and screen protector
- Air Filtration System is added to all orders unless specifically removed
