DIN Adapter

Analytical Equipment

The Brookfield DIN Adapter provides an alternative to measure small sample volumes but require DIN53019 compatibility.

Full Description

The Brookfield DIN Adapter provides an alternative to measure small sample volumes but require DIN53019 compatibility.

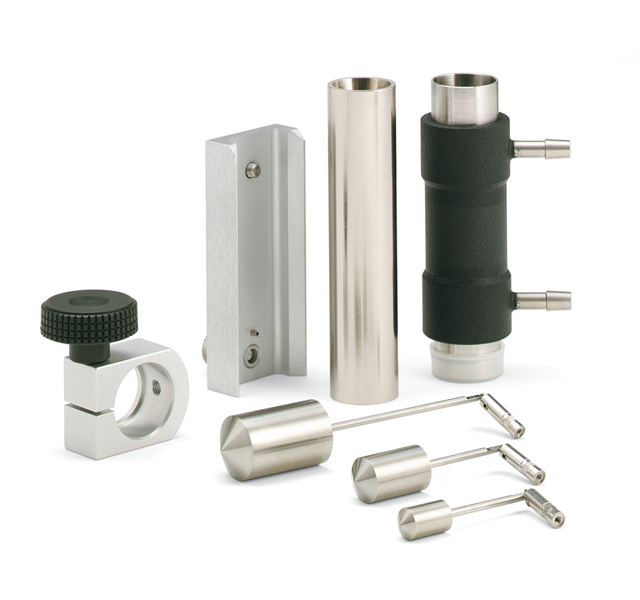

The DIN Adapter Accessory (DAA) is a cylindrical spindle geometry that conforms to the DIN 53019 specification. Three spindles and three chambers are provided. The DAA can be attached to any standard Brookfield Laboratory Viscometer/Rheometer.

FEATURES & BENEFITS

Complies with DIN 53019 requirements for test geometry. DIN is the German equivalent to the U.S. ASTM Standards.
Designed to provide an alternative for those customers having limited sample volume. Requires 16 mL to 20 mL sample size.
Cylindrical geometry provides defined shear rates.
Comes with three spindles and two chambers for measurement range of 1 to 50,000 cP.

EZ-LOCK OPTION**

The DIN Adapter is also available to purchase with an EZ-Lock spindle couple system. This option allows spindles to be quickly attached and removed, and may also help prevent against damage that can occur from frequent spindle changes or multiple users. Please contact Brookfield or an authorized dealer for additional details and part numbers. Existing Din Adapters can also be retrofitted. Please contact Brookfield or an authorized dealer for details and part numbers.

**Note: The EZ-Lock option must be purchased for use with all "EXTRA" series Viscometers/Rheometers as well as all other instruments that have an EZ-Lock spindle coupling system.

What's Included

Helipath Drive Motor
Six T-bar Spindles
Coupling
Lab Stand Rod and Base
Case

Specifications

DIN Adapter Ranges cP (mPa·s)
LVT	LVDV-E DV1MLV	DV2TLV DV3TLV*	RVT, RVDVE, DV1MRV	DV2TRV DV3TRV*
1.9-37.9K	.2-37.9K	.0-50K	2.2-50K	5.0-50K
DIN Adapter Ranges cP (mPa·s)
HAT, HADVE, DV1MHA	DV2THA DV3THA*	HBT, HBDVE DV1MHB	DV2THB DV3THB*
24.4-50K	10.0-50K	97.6-50K	40.0-50K
