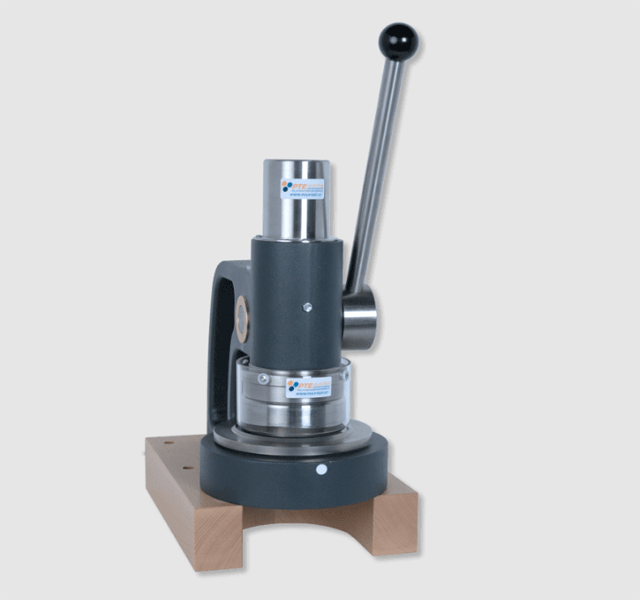

ROUND SAMPLE PUNCH MANUAL
Preparation of round tissue, paper and board samples to determine the grammage.
Full Description
CODE: P.102.XXX
USAGE
Preparation of round tissue, paper and board samples to determine the grammage.
DEVICE DESCRIPTION

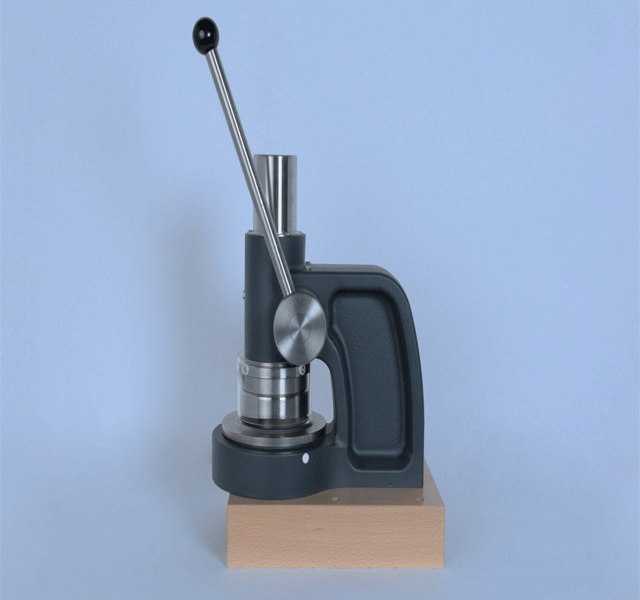

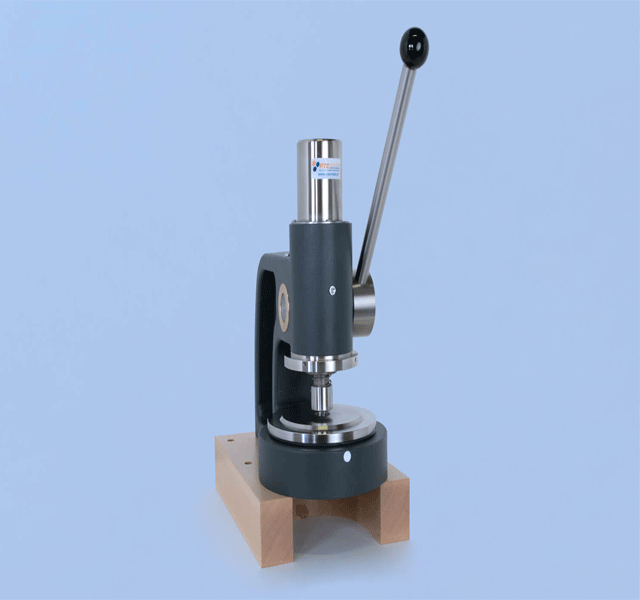

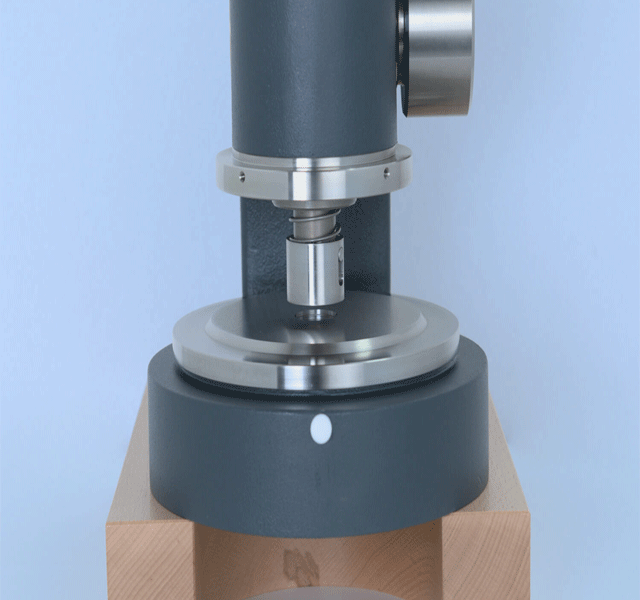

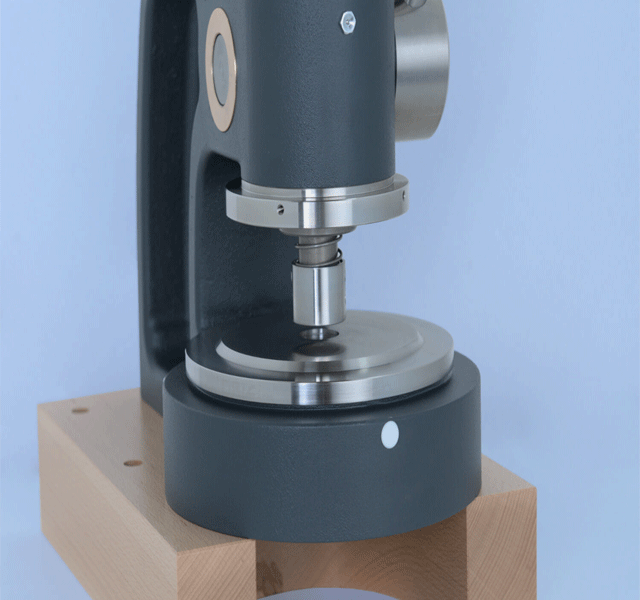

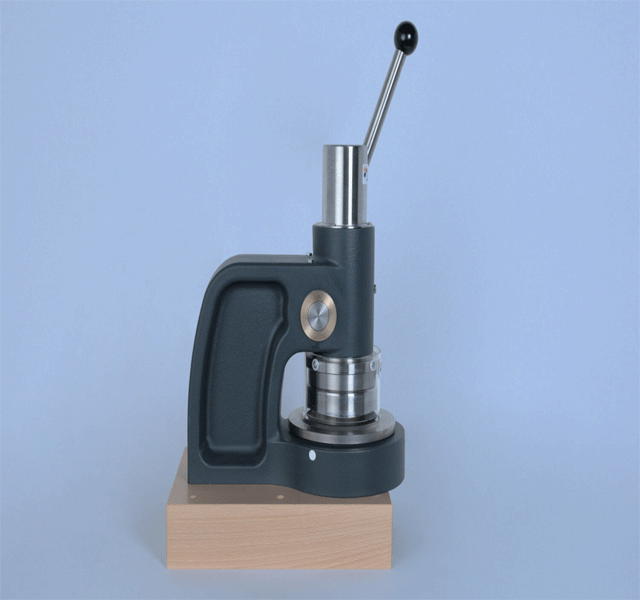

An extremely precise punch with a frame made of high-class casted aluminum. The high precision knife made of stainless tool steel allows the cutting of low grammage materials like e.g. tissue or cigarette paper as well as craft liner with higher grammage. The knife has a cutting gap of only 5 μm which gives a very exact cutting edge and it works in a grammage scope ranging from 10 g/m² to 1 000 g/m². The special design prevents the paper from sagging and ensures that no injuries occur. The guide needs only little oil and the device requires little maintenance.
FEATURES
- high quality manufacturing and materials
- highly precise punching blades
- effortless one lever operation
- fast and easily accessible sample take out
- sagging prevention

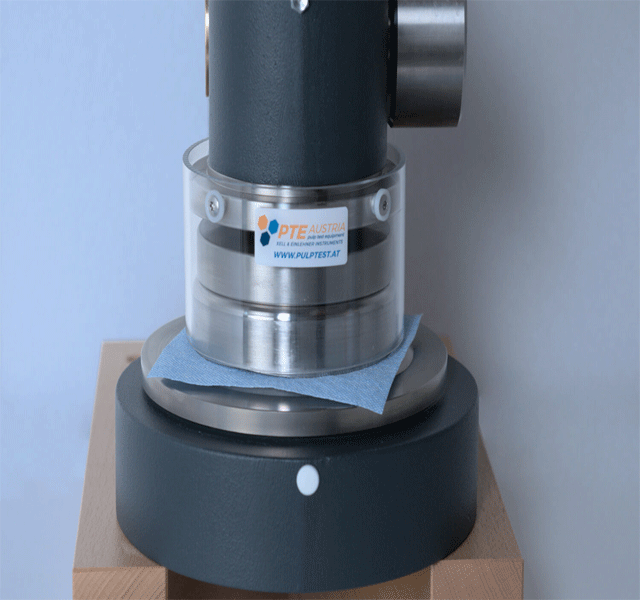

- special acrylic glass safety cover of punching area
- different sizes available
- CE certified
SPECIFICATIONS
| sample thickness | from 0.1 mm up to 6 mm (depending on the material) |
Models
| Code | Description |
|---|---|
| P.102.015 | Round Sample Punch with 15 cm² |
| P.102.050 | Round Sample Punch with 50 cm² |
| P.102.100 | Round Sample Punch with 100 cm² |
Applicable standards
ISO 536; TAPPI T410 accords to CE safety standards
