PUNCH and DIE CUTTER
To manually prepare sample strips for e.g. tensile tests.
Full Description
CODE: P.501.XXX
USAGE
To manually prepare sample strips for e.g. tensile tests.
DEVICE DESCRIPTION

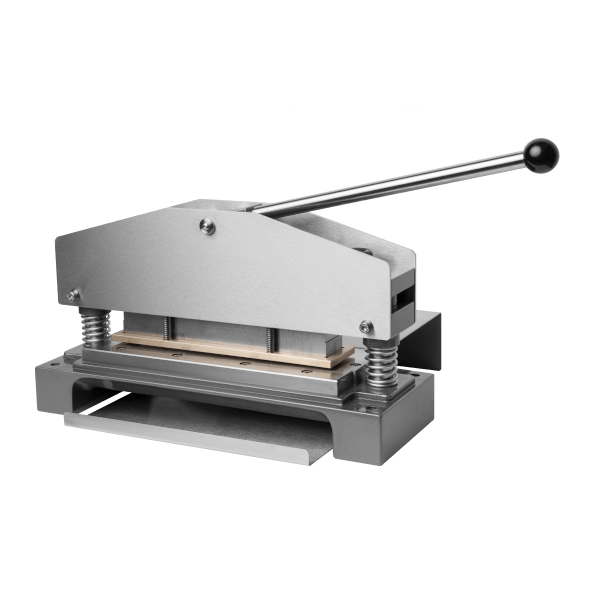

The sturdy punch & die cutter is fully made of metal and is equipped with a feeder table, a hand lever for easy operation and a strip pan. The upper and lower premium blade guarantees precise cutting and accurate sample strips.
Models
| Code | Sample size |
|---|---|
| P.501.315 | 300 x 15 mm |
| P.501.325 | 300 x 25 mm |
| P.501.350 | 300 x 50 mm |
| P.501.050 | 50 x 50 mm square |
| P.501.115 | 100 x 15 mm |
| P.501.612 | 6 inch x ½ inch |
| P.501.615 | 6 inch x 15 mm |
| P.501.701 | 7 inch x 1 inch |
