PRECISION SAMPLE CUTTER
To prepare paper and board samples for the Elmendorf Tear Test or the Bending Stiffness Test.
Full Description
FOR ELMENDORF BENDING STIFFNESS TEST
CODE: P.301.XXX
USAGE
To prepare paper and board samples for the Elmendorf Tear Test or the Bending Stiffness Test.

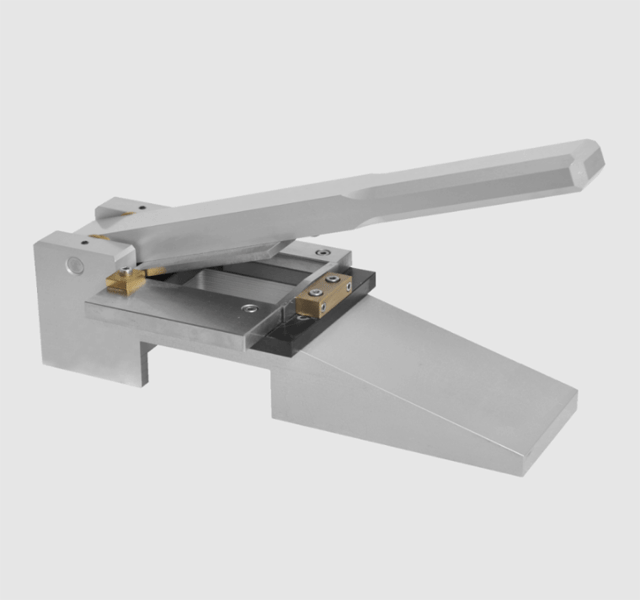

DEVICE DESCRIPTION
The sturdy precision hand cutter is fully made of metal. The upper and lower blade are made of premium material and guarantee precise cutting and accurate samples. The tabletop device is equipped with several safety installations and by pushing down the lever, the sample is cut out easily. Underneath the cutting area is a gap for fast and simple take out of the sample.
Models
| Code | Sample size | Test |
|---|---|---|
| P.301.100 | 50 x 63 mm | Elmendorf |
| P.301.101 | 63 x 63 mm | Elmendorf |
| P.301.102 | 63 x 76 mm | Elmendorf |
| P.301.200 | 38 x 80 mm | Bending Stiffness |
| P.301.201 | 38 x 76 mm | Bending Stiffness |
