MUFFLE FURNACE

Pulp, Paper, Cardboard & Tissue

For ash content determination of paper or pulp samples.

Request Quote Download Datasheet

Ask a question →

Full Description

CODE: L.803.XXX.XX

USAGE

For ash content determination of paper or pulp samples.

DEVICE DESCRIPTION

High accuracy electric muffle furnace is a universal laboratory furnace, firing up to 1100°C and designed for material testing and heat treatment such as hardening, loosening, normalizing ceramic and stoneware samples as well as ash content determination of pulp and similar products. To eliminate gases or smoke that are released during thermal processing, an exhaust system may be additionally installed in the product. The furnace is an excellent fit for scientific laboratories, educational institutions, ceramic studios, medicine and paper and pulp industry.

SPECIFICATIONS

One-piece high thermal efficiency vacuum-formed ceramic fiber chamber

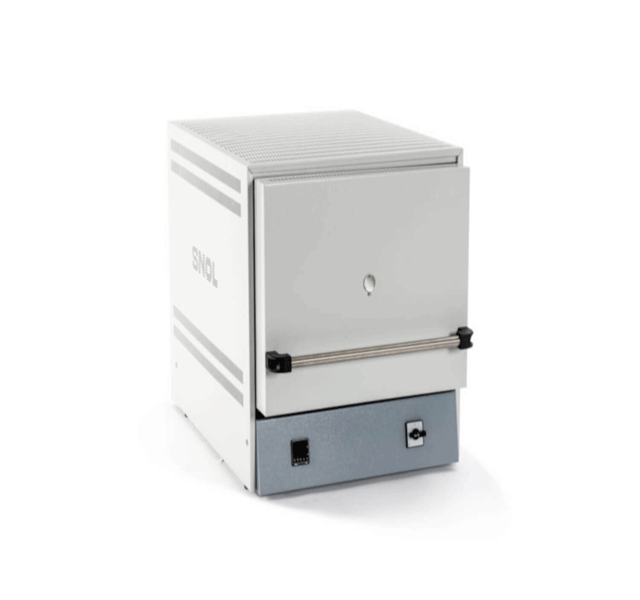

Outside casing: stainless steel or metal sheet, powder painted grey

Heating elements are embedded in vacuum-formed fiber on four sides of the chamber

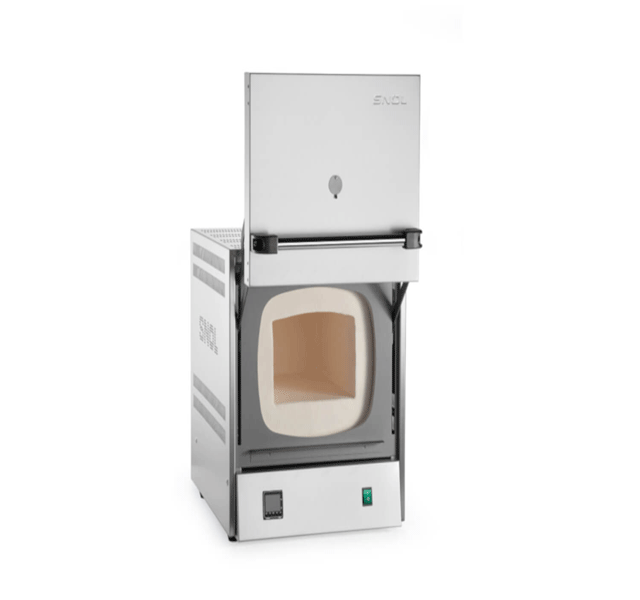

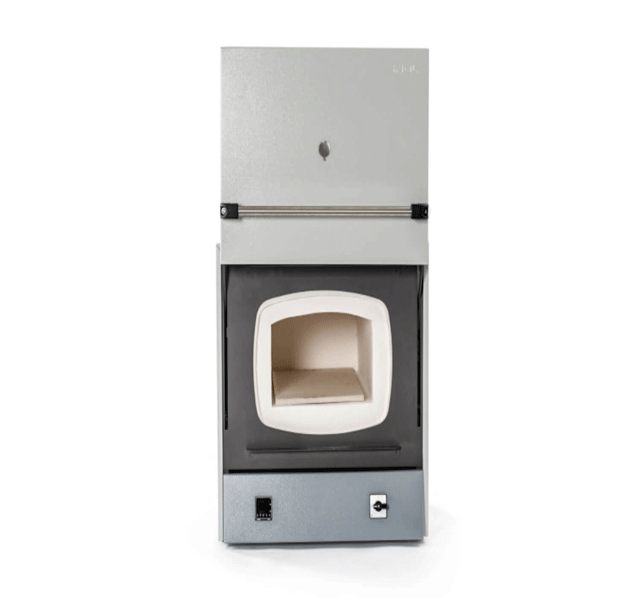

Door opens upwards

Door safety interlock switch

Control panel is placed in the underpart of the furnace

Non-programmable temperature controller – "Omron E5CC"

Ceramic bottom plates

Fast heating time due to low thermal mass construction

Low power consumption

Good stability and uniformity

CONNECTIONS

Electricity

230 v, 50 Hz

OPTIONAL ADDITIONS

"Eurotherm 3216" (non-programmable temperature control)

"Eurotherm 3208" (programmable temperature control)

"Omron E5CC-T" (programmable temperature control)

PC connection and special designed software

OTP (over temperature protection, non-adjustable)

OTP (over temperature protection, adjustable - "Eurotherm 3216i")

OTP (over temperature protection, adjustable - "Omron E5GC")

Buzzer

Timer (delayed furnace start)

Ventilation hole ceramic tube (in the back side Ø17mm)

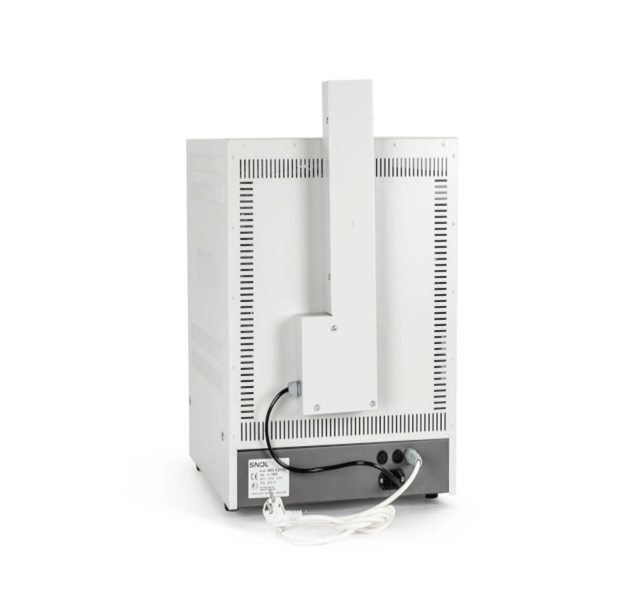

Chimney

Gas injection system for Argon or Nitrogen (flowmeter, reducer and connections)

Gas box to operate with protective gases (up to 1150°C)

Window Ø35mm temp. up to 1100°C

Models

Code	Execution	Max. Temp	Volume	Dimensions chamber [mm]	Dimensions outer case [mm]	Net weight
L.803.030	grey*	1100°C	3 l	120 x 200 x 105	345 x 470 x 430	17 kg
L.803.030.SS	stainless steel	1100°C	3 l	120 x 200 x 105	345 x 470 x 430	17 kg
L.803.082	grey*	1100°C	8.2 l	195 x 310 x 135	445 x 660 x 495	25 kg
L.803.082.SS	stainless steel	1100°C	8.2 l	195 x 310 x 135	445 x 660 x 495	25 kg
L.803.130	grey*	1100°C	13 l	220 x 335 x 170	505 x 685 x 555	36 kg
L.803.130.SS	stainless steel	1100°C	13 l	220 x 335 x 170	505 x 685 x 555	36 kg
L.803.220	grey*	1100°C	22 l	280 x 500 x 160	605 x 855 x 620	59 kg
L.803.220.SS	stainless steel	1100°C	22 l	280 x 500 x 160	605 x 855 x 620	59 kg
L.803.390	grey*	1100°C	39 l	320 x 495 x 230	655 x 890 x 740	75 kg
L.803.390.SS	stainless steel	1100°C	39 l	320 x 495 x 230	655 x 890 x 740	75 kg
