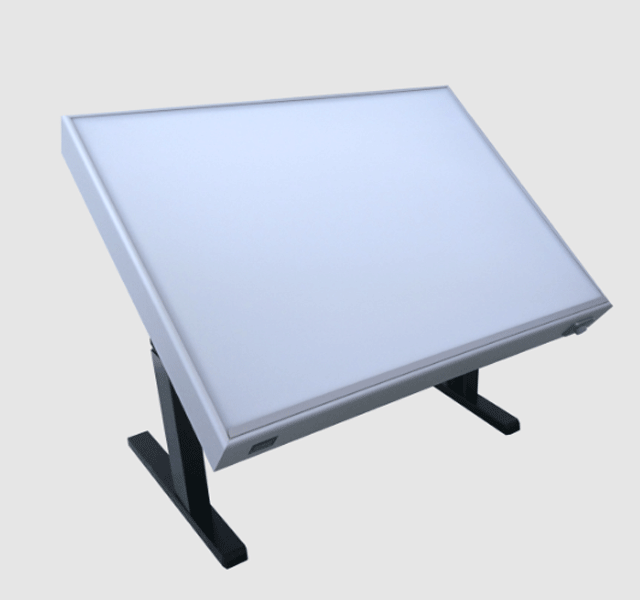

LUMINOUS TABLE
To visually examine dirt and shives in paper and board samples by transmitted light.
Full Description
CODE: D.806.XXX
USAGE
To visually examine dirt and shives in paper and board samples by transmitted light.
DEVICE DESCRIPTION
This light table permits not only classical transparency and film viewing, but also quality control of translucent copy under a D50 standard illuminant. The color-neutral, anti-reflective surface and special reflectors ensure homogeneous illumination with high luminous efficiency. The light table is continuously dimmable between 500 and 5 000 lux. The working height is adjustable from 80 to 95 cm to suit your personal needs and the luminous plate can be tilted from 0 – 85° for an ergonomic working process.
SPECIFICATIONS
robust and ergonomic design
color-neutral, anti-reflective surface
special reflectors for homogeneous illumination with high luminous efficiency
continuously dimmable: 500 – 5 000 lux
working height adjustable: 80 – 95 cm
luminous plate tiltable: 0 – 85°
luminous density: 2 500 – 3 000 cd/m²
illumination: 9 x 36 watts / 5 000 Kelvin
quick-start button, easy on eyes, flicker-free
illumination area: 116 x 93 cm (W x D)
CONNECTIONS
| Electricity | 230 V, 50 Hz AC |
Models
| Code | Article |
|---|---|
| D.806.200 | Luminous table with dimming knob |
| D.806.300 | Luminous table with digital control display |
Applicable standards
ISO 5350
