Full Description
CODE: E.226.XXX
USAGE
To prepare samples for the FCT (Flat Crush Test).
DEVICE DESCRIPTION

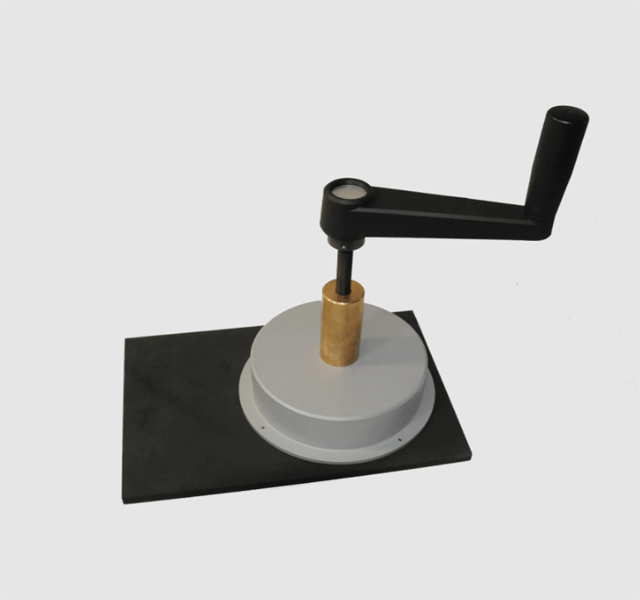

The FCT Cutter is equipped with premium blades for cutting precise, circular FCT samples out of corrugated board. With its four fixation pins, the device prevents sliding of the sample while cutting. Samples with a thickness of 10 mm can be easily cut. A foam plate ensures safe operation without damaging the desk underneath. To cut a sample, the sample material is placed onto the foam plate, the Cutter is put on top and the sample is fixed with the four pins. Pushing the lever clockwise around once, the sample is cut.
Models
| Code | Sample size | Cutting diameter |
|---|---|---|
| E.226.100 | 100 cm² | 112.84 mm |
| E.226.060 | 60 cm² | 79.79 mm |
| E.226.064 | 10 in² (64 cm²) | 90.60 mm |
| E.226.032 | 5 in² (32 cm²) | 64.10 mm |
