EQUALIZER
To stir permanently and homogenize disintegrated pulp samples.
Full Description
CODE: P.402.XXX
USAGE
To stir permanently and homogenize disintegrated pulp samples.
DEVICE DESCRIPTION

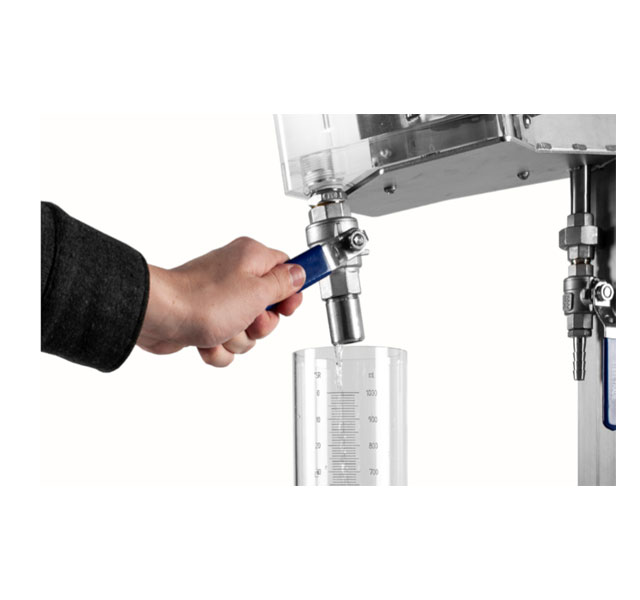

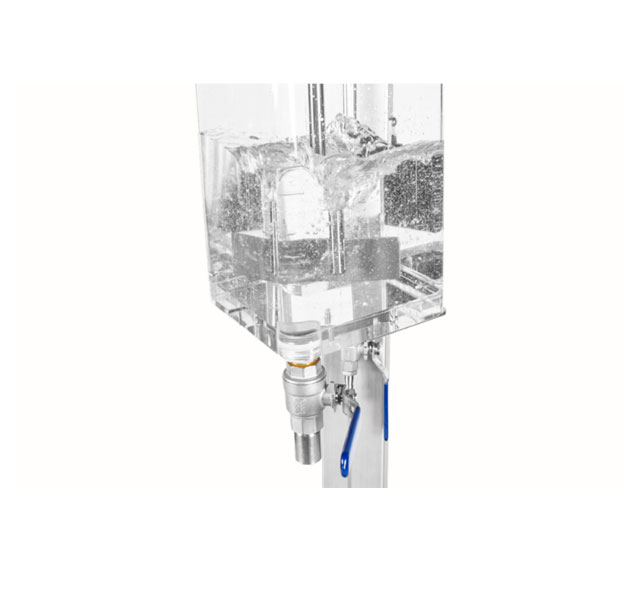

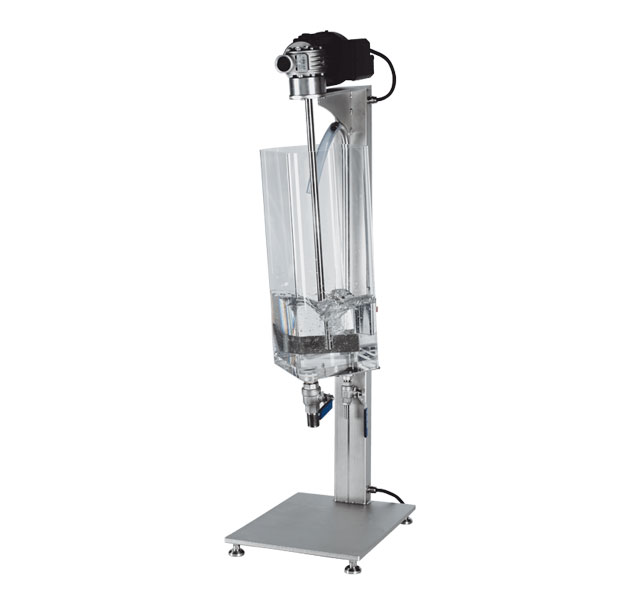

The equalizer is made of sturdy stainless steel and lightweight acrylic glass. The smooth-running motor (30 dBA) ensures constant and even stirring. The standard compliant angle of inclination of the stirrer and the dynamic propeller shape keep the properties of the cellulose-fibers constant even after prolonged stirring. A water inlet on the upper edge of the acrylic container with max. capacity of 12l (max. filling capacity of 10l before spilling over while processing) makes filling and cleaning easy. Samples are taken out via a ball valve mounted in the bottom of the acrylic container.
Models
| Code | Device |
|---|---|
| P.402.W | Equalizer – wall mounted |
| P.402.T | Equalizer – table top |
| P.402.W-REG | Equalizer – wall mounted with speed regulation |
| P.402.T-REG | Equalizer – table top with speed regulation |
Applicable standards
Zellcheming Merkblatt V 6/61
