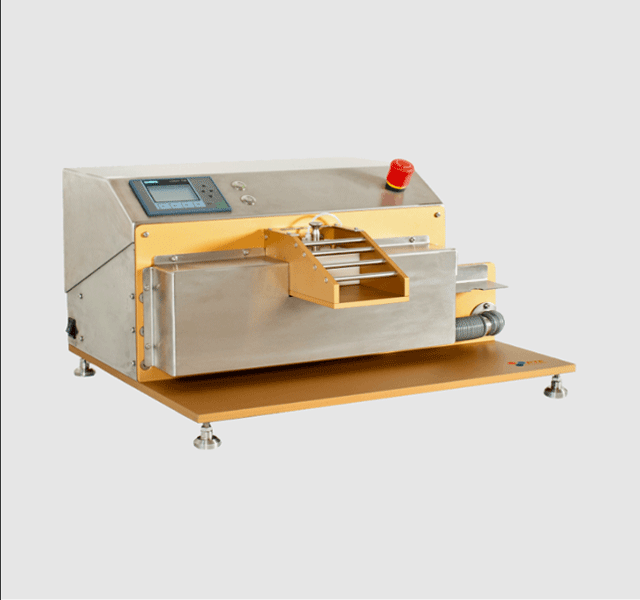

ECT SAMPLE SAW
To prepare very precise and exact corrugated board samples for the Edge Crush Test.
Full Description
CODE: P.302
USAGE
To prepare very precise and exact corrugated board samples for the Edge Crush Test.
DEVICE DESCRIPTION
Research has proven that a sample cut by the ECT Cutter Type “Billerud” gives lower values on the crush tester than a sample cut by the ECT Sample Saw, both samples were cut under the same conditions. Therefore, an ECT Sample Saw in a modern and new design has been developed by PTE Austria for cutting very exact and precise ECT samples automatically. The device is built into a robust stainless steel housing with golden elements.
FEATURES
- robust design with golden elements
- high speed motor for cleanest cuts
- automatic cutting process

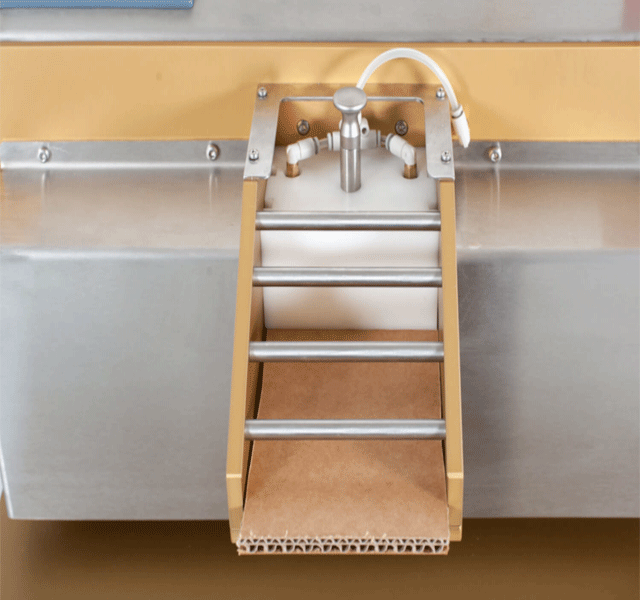

- automatic sample ejection
- counter for cuttings
- easy changeable blades
- safety and security features
- with vacuum cleaner system
- digital display
- CE certificate
SPECIFICATIONS
| sample thickness | up to 22 mm |
| sample width | exact 1-inch (25.4 mm) |
| sample length | 100 mm |
CONNECTIONS
| Electricity | 230 V, 50 Hz AC |
| Air | 400 -600 kPa |

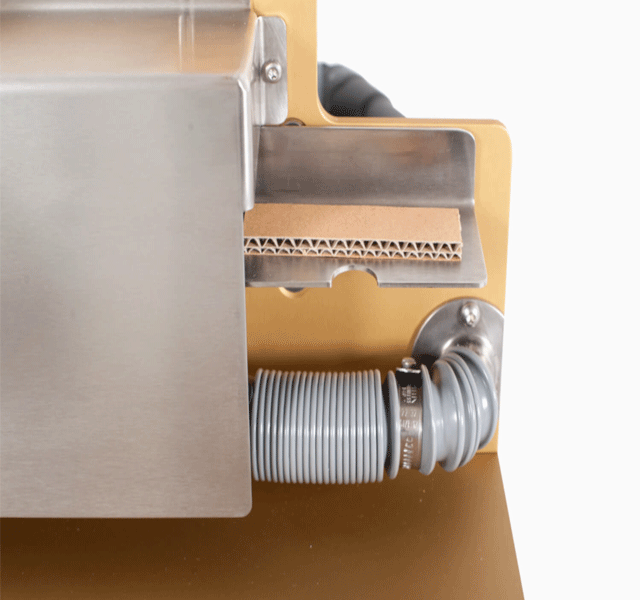

| Vacuum Cleaner | Connection on the back side |
Applicable standards
APPLICABLE STANDARDS; DIN EN ISO 3037; ISO 13821; DIN 53149; TAPPI T811, T823, T838, T839; FEFCO No. 8
