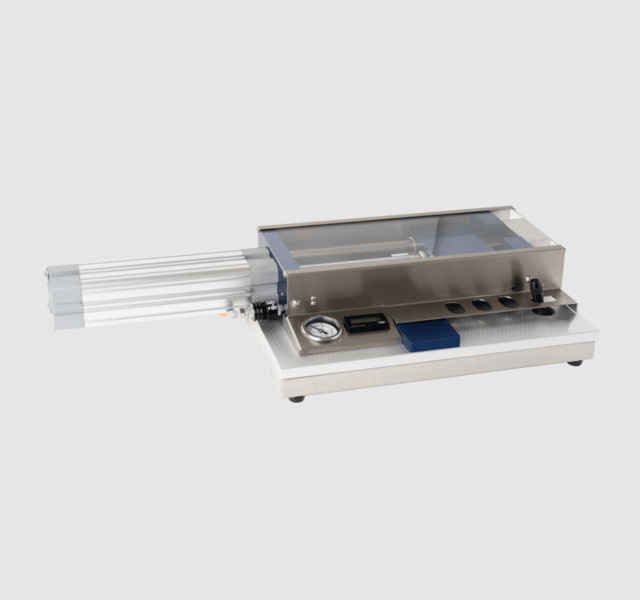

ECT CUTTER TYPE BILLERUD
To prepare samples for the ECT (Edge Crush Test).
Full Description
CODE: D.312.025
USAGE
To prepare samples for the ECT (Edge Crush Test).
DEVICE DESCRIPTION
This highly precise “Billerud” Cutter is equipped with two parallel guided razor blades, which cut out very clean and parallel samples of 25 mm in width and 100 mm length from corrugated board. When the sample to be cut is laid onto the safety guide and the lever is actuated, the blades are moved via compressed air and cut out the sample.
FEATURES
- highly precise razor blades
- parallel and clean cutting
- mechanical timer
- safety guides
- acrylic glass safety cover
- pneumatic cutting
- CE certificate
SPECIFICATIONS
| sample width | 25 mm |
| sample length | 100 mm |
| sample height | up to 7 mm |
CONNECTIONS
| Air | Ø6 mm (max. 400 kPa) |
Applicable standards
ISO 3037
