Drying Cabinet

Lab Press Equipment

Stainless steel or powder-coated drying cabinet for laboratory sample preparation.

Request Quote Download Datasheet

Ask a question →

Full Description

STAINLESS STEEL OR POWDER COATED HOUSING

CODE: L.801.XXX.XX

USAGE

For heat treatment of various materials up to 300°C.

DEVICE DESCRIPTION

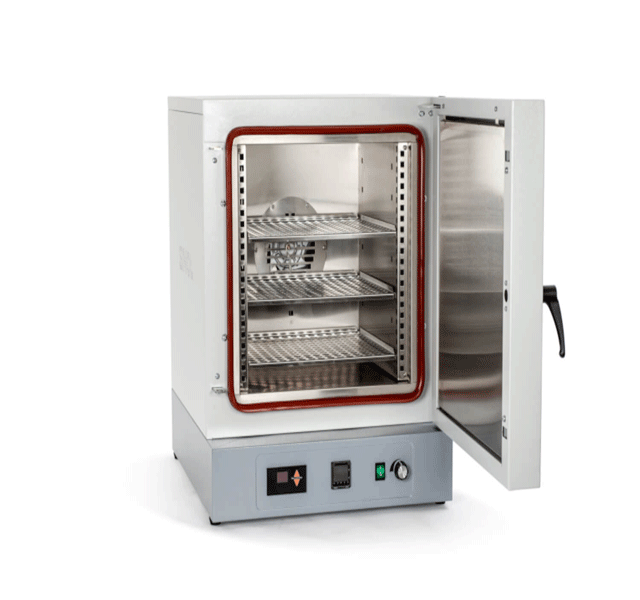

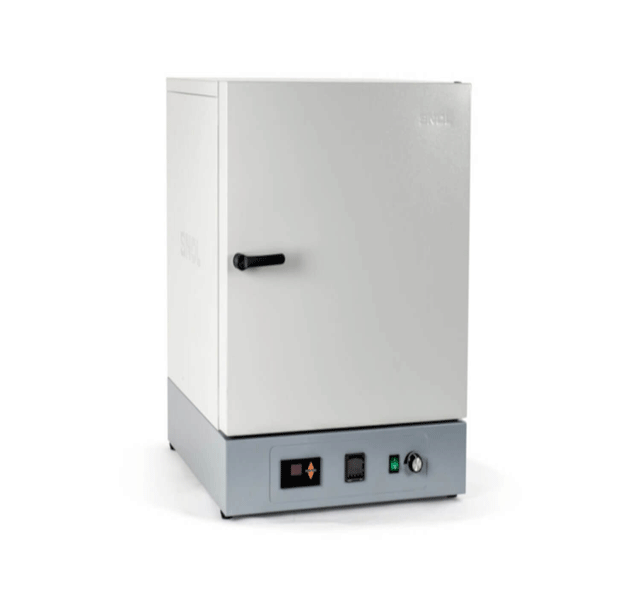

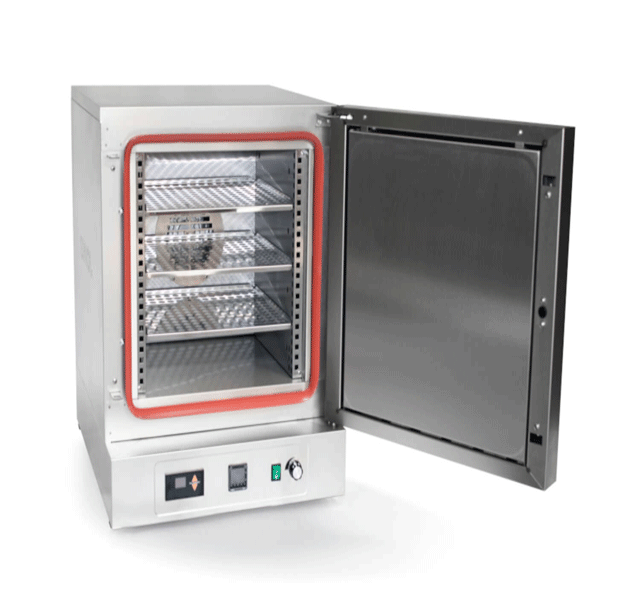

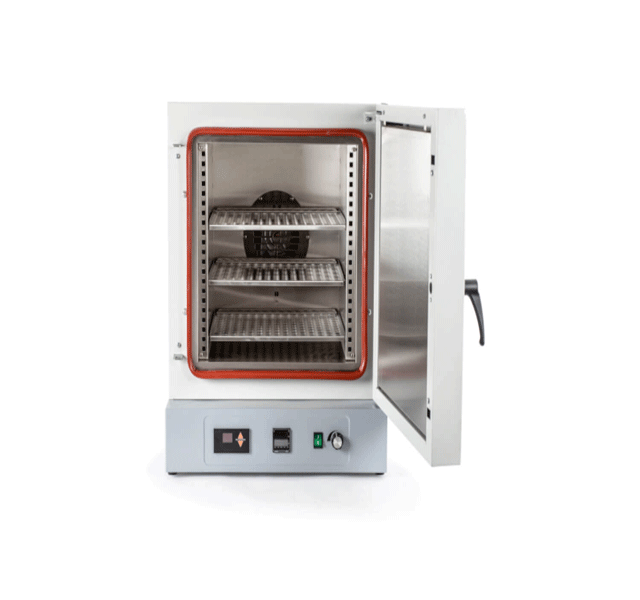

This electric oven is ideal for drying, heating, thermal tests, aging and similar applications in an environment with natural air circulation. The forced air circulation enables an even temperature distribution and ensures optimal results. The furnace is ideally suited for use in scientific laboratories, educational institutions, in the field of medicine and in the pulp industry.

BASE MODEL SPECIFICATIONS

chamber made of stainless steel (AISI 304)

adjustable forced horizontal air circulation

2 - 3 stainless steel shelves (depending on the model)

thermal insulation made of rock wool (asbestos-free)

the door opens to the right

stainless steel door inside

buzzer at the end of the program

non-adjustable overheating protection

control cabinet in the lower part of the furnace

non-programmable temperature controller - "Omron E5CC"

short heating / cooling time

outer housing available in stainless steel or gray, powder-coated sheet steel

CONNECTIONS

Electricity

230 V, 50 Hz

OPTIONAL ACCESSORIES

“Eurotherm 3216" (non-programmable temperature controller)

"Eurotherm 3208" (programmable temperature controller)

"Omron E5CC-T" (programmable temperature controller)

PC interface and own software

non-adjustable overheating protection

adjustable overheating protection "Eurotherm 3216i"

time switch

argon or nitrogen shielding gas supply system (flow meter, reducer and connections) + additional chamber seal

additional hole with cover Ø50 mm

additional chamber seal

window 258 x 200 mm

additional shelf

reinforced shelf

Specifications

Housing	Stainless steel or powder-coated

Models

Code	Execution	Max. Temp.	Volume	Chamber dimensions [mm]	Outer case dimensions [mm]	Net weight
L.801.020	grey*	300°C	20 l	240 x 280 x 340	460 x 680 x 640	36 kg
L.801.020.SS	stainless steel	300°C	20 l	240 x 280 x 340	460 x 680 x 640	36 kg
L.801.060	grey*	300°C	60 l	380 x 380 x 420	600 x 755 x 720	49 kg
L.801.060.SS	stainless steel	300°C	60 l	380 x 380 x 420	600 x 755 x 720	49 kg
L.801.120	grey*	300°C	120 l	550 x 400 x 580	750 x 775 x 880	68 kg
L.801.120.SS	stainless steel	300°C	120 l	550 x 400 x 580	750 x 775 x 880	68 kg
L.801.220	grey*	300°C	220 l	730 x 500 x 620	930 x 875 x 915	91 kg
L.801.220.SS	stainless steel	300°C	220 l	730 x 500 x 620	930 x 875 x 915	91 kg
L.801.420	grey*	300°C	420 l	1000 x 500 x 860	1200 x 905 x 1200	178 kg
L.801.420.SS	stainless steel	300°C	420 l	1000 x 500 x 860	1200 x 905 x 1200	178 kg
