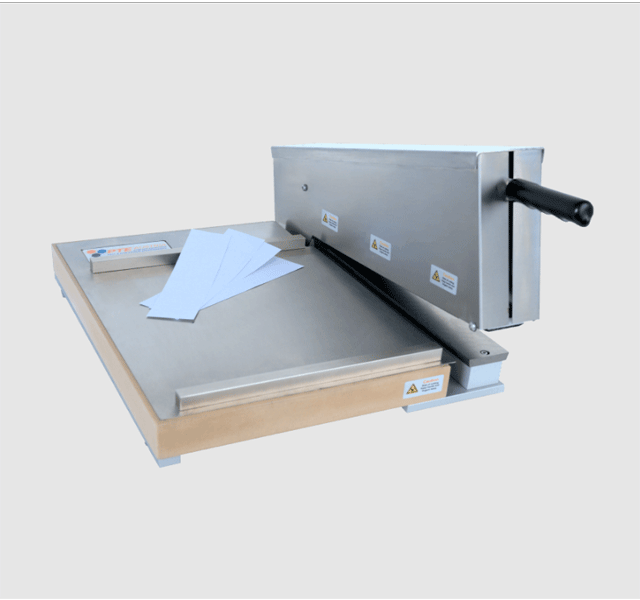

DOUBLE BLADE CUTTER
To cut paper samples and even foil in one single operation – quick and precise.
Full Description
CODE: E.209.XXX
USAGE
To cut paper samples and even foil in one single operation – quick and precise.
DEVICE DESCRIPTION

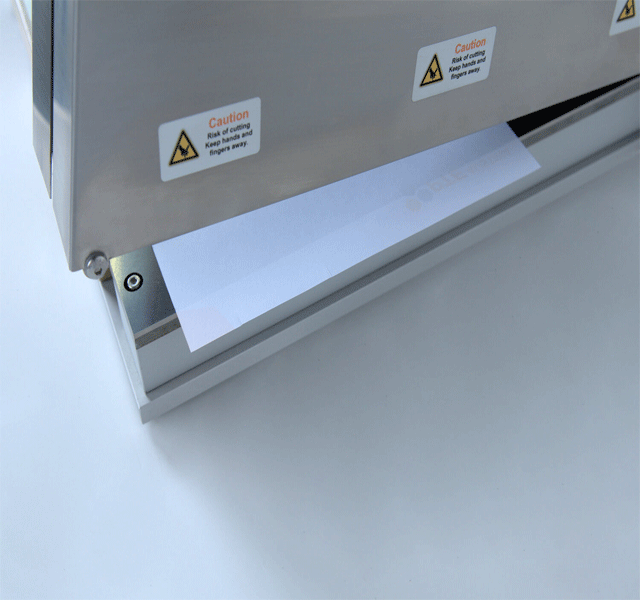

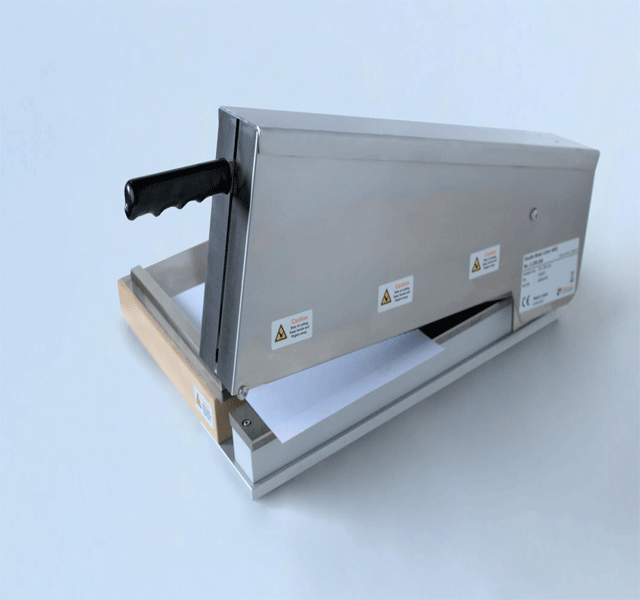

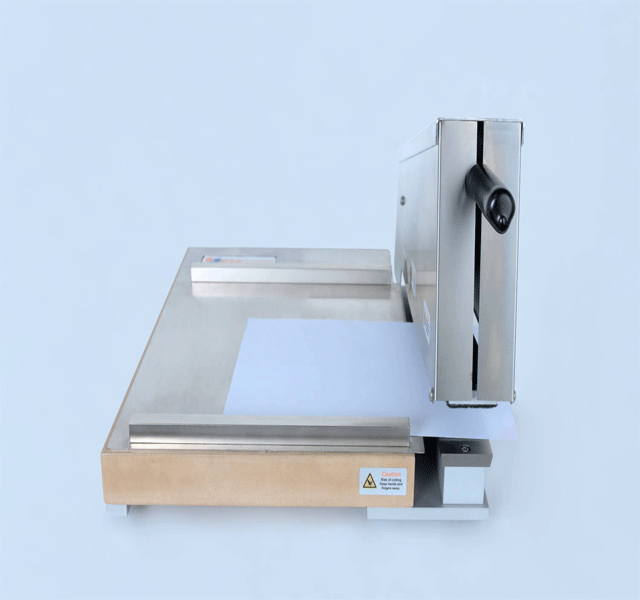

The double blade cutter is designed to prepare sample strips with a simple and effortless one hand operation. The blades, made of special hardened and ground steel, are installed with the push down lever and hidden underneath a safety protection cover. When the sample material is inserted, the lever can be pushed down slightly to fix the sample and obtain greater accuracy of the samples. The cutting length is standard 260 mm and there are several cutting choices of 10, 12.7, 15, 20 and 25.4 mm as well as the special cutting width of 50 mm for tissue tensile test samples.
Models
| Code | Device |
|---|---|
| E.209.100 | Double Blade Cutter, sample width: 10 mm |
| E.209.127 | Double Blade Cutter, sample width: 12.7 mm |
| E.209.150 | Double Blade Cutter, sample width: 15 mm |
| E.209.254 | Double Blade Cutter, sample width: 25.4 mm |
| E.209.500 | Double Blade Cutter, sample width: 50 mm |
Applicable standards
ISO 1924; 5626; 9895; 12625, SCAN P38, TAPPI T456; T494; T549
