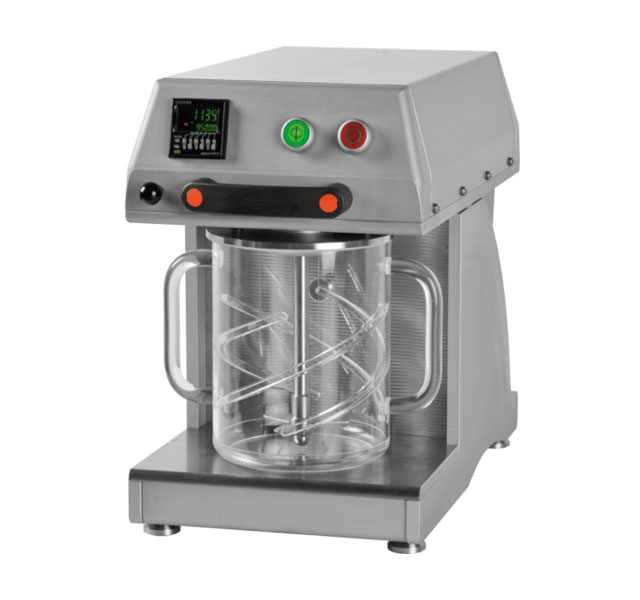

DISINTEGRATOR
For disintegration of pulp suspensions according to standardized conditions.
Full Description
CODE: P.401.X
USAGE
For disintegration of pulp suspensions according to standardized conditions.
DEVICE DESCRIPTION

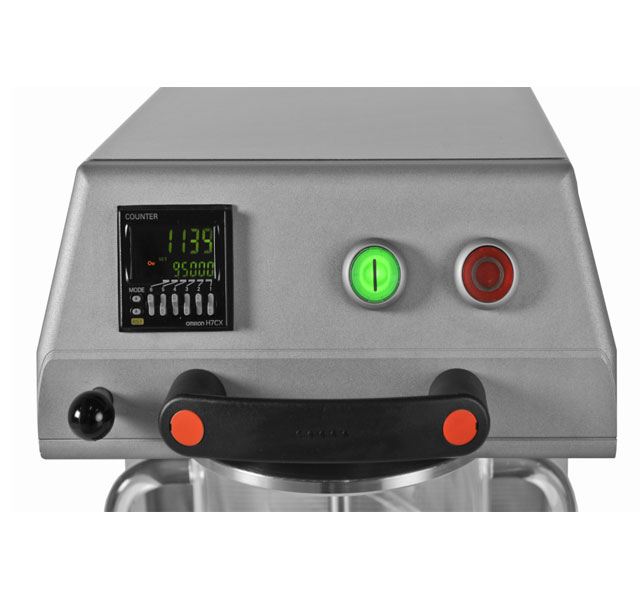

The disintegration device impresses with its simple and intuitive handling and its modern stainless steel look. The robust housing, consisting of high-quality aluminum coating and premium stainless steel, guarantees durability. The top of the device is balanced and can be opened easily in order to place the acryl or stainless steel pot underneath. On the front side of the device you can find the adjustable revolution counter and the start and stop button. Via the revolution counter the exact amount of revolutions needed can be adjusted to disintegrate the pulp. Multiple safety installations have been implemented in order to prevent damage to the device and/or injury to persons.
FEATURES
- top quality and manufacturing

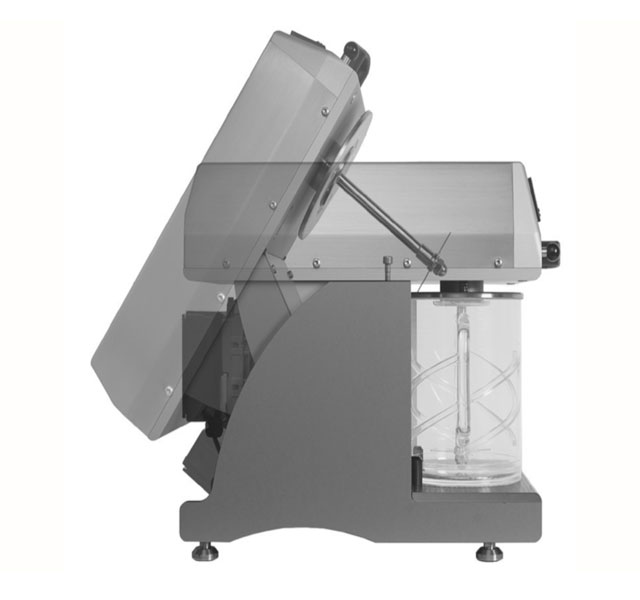

- balanced hinge head
- multiple safety installations
- digital revolution counter and display
- revolution speed according to ISO and TAPPI

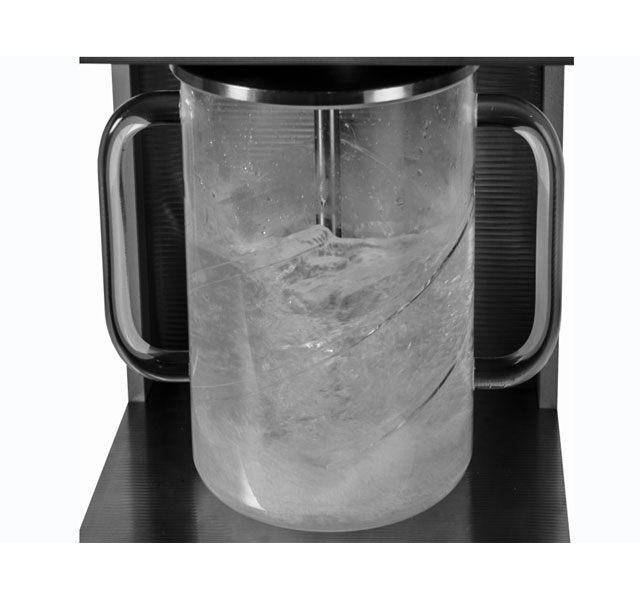

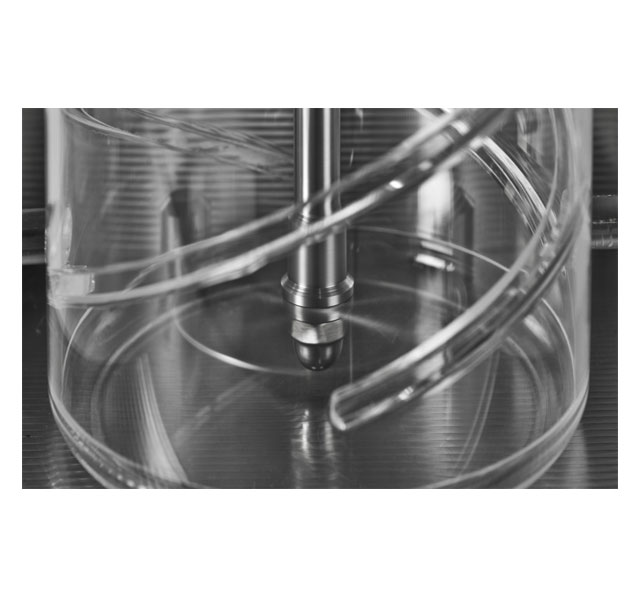

- disintegrator pot made of acrylic glass
- disintegrator pot made of stainless steel for disintegrating higher temperature samples optional available
Models
| Code | Device |
|---|---|
| P.401.A | Device with acrylic glass pot |
| P.401.S | Device with stainless steel pot |
| P.401.H | Device with heating plate and stainless steel pot |
| P.401.10.x | 10l Disintegrator |
Applicable standards
ISO 5263-1; TAPPI T205; SCAN C18/M2; PAPTAC C.6
