Dennison Wax Set
The Dennison wax sets are a reliable solution designed to evaluate the effects on the peel strength or surface strength of various paper and board materials.
Full Description
Code: P.900.xxx
Product overview
The Dennison wax sets are a reliable solution designed to evaluate the effects on the peel strength or surface strength of various paper and board materials.
Functionality
The heated wax stick is applied to the sample surface and adheres there. It is fixed in place with the aid of the wooden tension block. After cooling, the wax is carefully removed from the surface, which enables precise surface inspection.
Key features
- Suitable for coated and uncoated paper
- Adhesive strength range from grade 2A to 23A

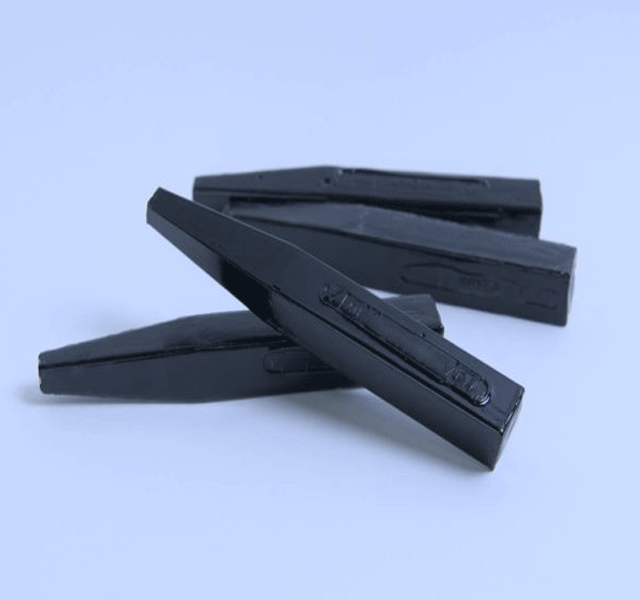

- Starter wax set contains 17 different wax crayons, an alcohol lamp, a wick and a wooden drawing block

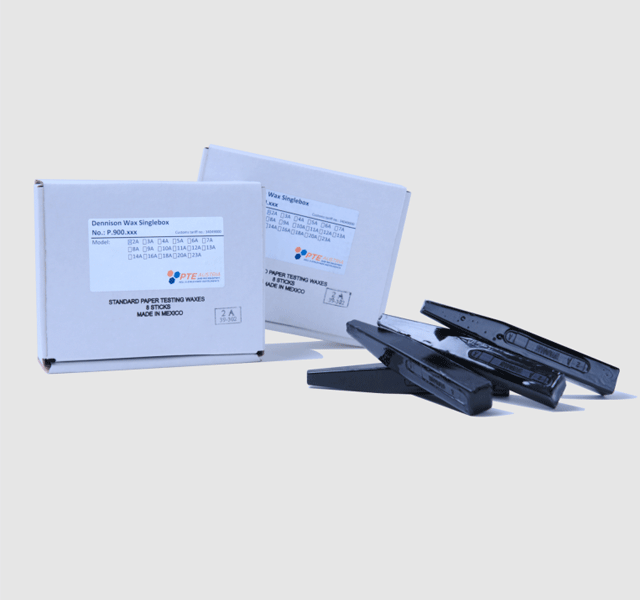

- individual boxes contain 8 wax crayons of the same type
Applications
- Paper and cardboard production
- Quality control and assurance
- Research and development
Models
| Available models | |
| Code | Box Art |
| P.900.02A | Wachsstiftebox mit 8 Stk des Typs 2A |
| P.900.03A | Wachsstiftebox mit 8 Stk des Typs 3A |
| P.900.04A | Wachsstiftebox mit 8 Stk des Typs 4A |
| P.900.05A | Wachsstiftebox mit 8 Stk des Typs 5A |
| P.900.06A | Wachsstiftebox mit 8 Stk des Typs 6A |
| P.900.07A | Wachsstiftebox mit 8 Stk des Typs 7A |
| P.900.08A | Wachsstiftebox mit 8 Stk des Typs 8A |
| P.900.09A | Wachsstiftebox mit 8 Stk des Typs 9A |
| P.900.10A | Wachsstiftebox mit 8 Stk des Typs 10A |
| P.900.11A | Wachsstiftebox mit 8 Stk des Typs 11A |
| P.900.12A | Wachsstiftebox mit 8 Stk des Typs 12A |
| P.900.13A | Wachsstiftebox mit 8 Stk des Typs 13A |
| P.900.14A | Wachsstiftebox mit 8 Stk des Typs 14A |
| P.900.16A | Wachsstiftebox mit 8 Stk des Typs 16A |
| P.900.18A | Wachsstiftebox mit 8 Stk des Typs 18A |
| P.900.20A | Wachsstiftebox mit 8 Stk des Typs 20A |
| P.900.23A | Wachsstiftebox mit 8 Stk des Typs 23A |
| P.900.SET | Dennison Wachse Starter Set |
Applicable standards
TAPPI T459, ASTM D2482, CPPA D11
