CONCORA MEDIUM FLUTER
To prepare corrugated samples for the CMT and CCT.
Full Description
CODE: P.216.XXX
USAGE
To prepare corrugated samples for the CMT and CCT.
DEVICE DESCRIPTION

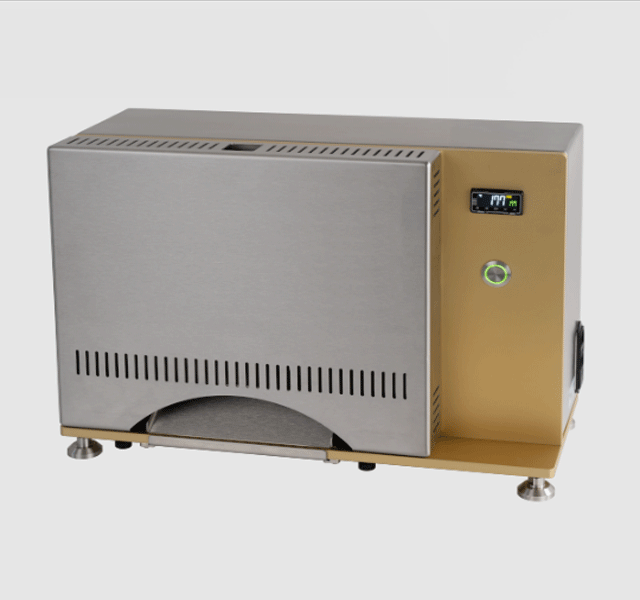

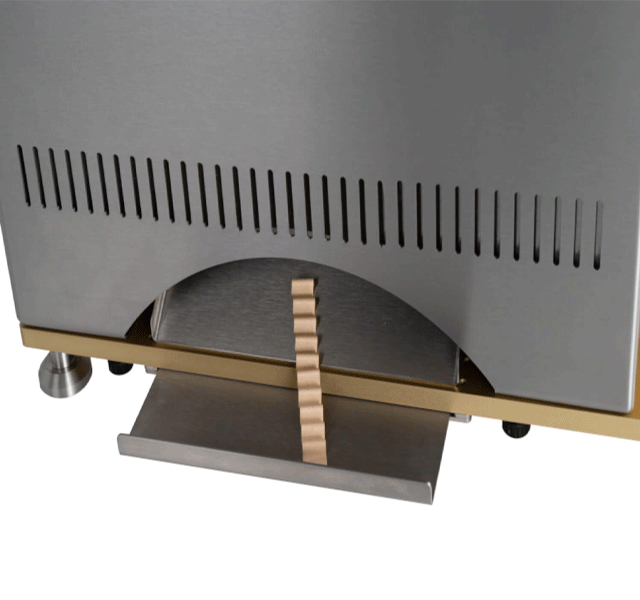

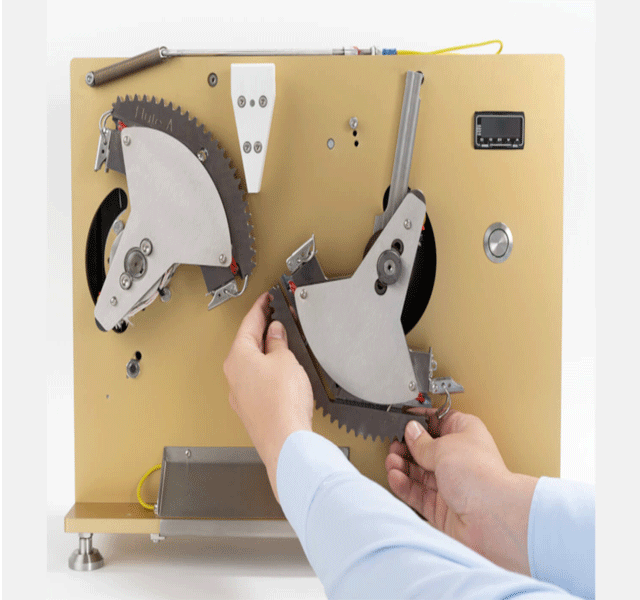

The Concora Medium Fluter consists of a main housing, where the motor and the controls are located and an additional housing with a protective cover, where the segments are located. The temperature of the segments can be set up to 200°C (the standard is 175°C ±5°C) via the control elements and display on the main housing. The segments are directly heated with only 200 W heating power and are pressed against each other with force of 100 N ±10 N. To prepare a sample, the sample is put into a sample feed on the top of the machine and when ready, it falls into the collecting tray. Due to the quick clamping, the segments are easily exchangeable.
FEATURES
- top quality and manufacturing
- digital temperature display
- exact temperature distribution on the segments
- spring balance for force control
- CE certified
SPECIFICATIONS
| adjustable temperature | up to 200°C |
| heating of the segments | 2 - 3 min |
| speed of segments | 4.5 rpm |
| pressing force | 100 N ±10 N |
CONNECTIONS
| Electricity | 110 - 230 V, 50/60 Hz AC |
Models
| Code | Description |
|---|---|
| P.216 | Concora Medium Fluter without segments |

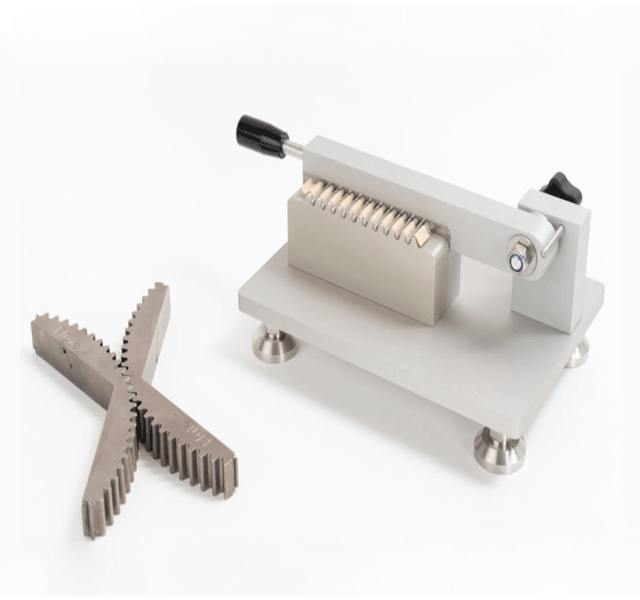

| P.216.SEG-A | segment »A« with 3rd hand & rub block |
| P.216.SEG-B | segment »B« with 3rd hand & rub block |
| P.216.SEG-C | segment »C« with 3rd hand & rub block |
Applicable standards
APPLICABLE STANDARDS; ISO 7263; TAPPI T809; SCAN P27; PAPTAC D29; APPITA/AS 1301.434s
