COBB UNGER TESTER
For measuring the water or oil absorption of sized samples.
Full Description
WATER OR OIL ABSORPTION TESTER
PREMIUM
CODE: D.511.XXX
USAGE
For measuring the water or oil absorption of sized samples.
DEVICE DESCRIPTION

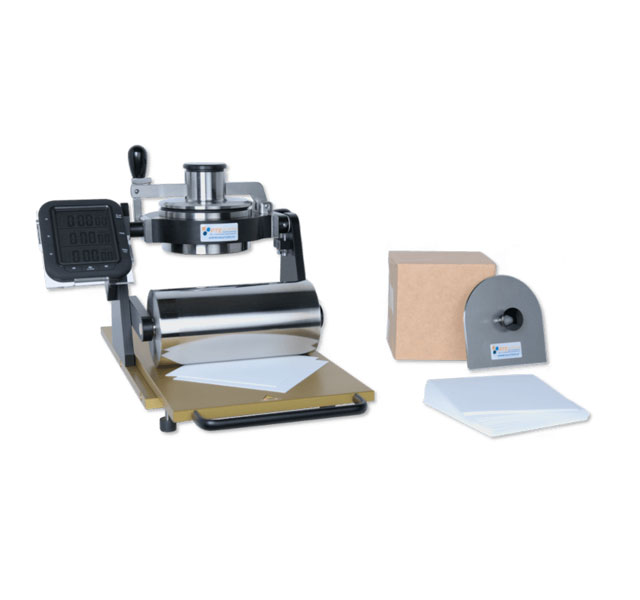

The Cobb-Unger oil and water absorption tester is different to a regular Cobb tester due to its pivotable liquid container and quick latch cover, which can be removed for easy cleaning. The integrated couching mechanism consists of the roll and the couching plate and allows effortless couching. The unit includes a digital stopwatch which starts automatically when the liquid container is rotated.
FEATURES
- easy to clean due to removable vessel
- quick clamping device for convenient insertion of the sample
- integrated stopwatch with timer function and automatic start via container rotation
- integrated couching device
- no lifting of the heavy 10 kg couching roll
- sample template
- blotting paper for Cobb tests
Models
| Code | Description |
|---|---|
| D.511.100 | Cobb Unger 100 cm² (standard) |
| D.511.100.D | Cobb Unger 100 cm² with special seal set |
| D.511.50 | Cobb Unger 50 cm² |
| D.511.50.D | Cobb Unger 50 cm² with special seal set |
| D.511.10 | Cobb Unger 10 cm² |
| D.511.10.D | Cobb Unger 10 cm² with special seal set |
Applicable standards
ISO 535; TAPPI T441; SCAN P12; EN 20535; DIN 53132
