Chip Classifier
Classifies wood chip samples by size for quality control ahead of pulping.
Full Description
CODE: P.100.XXX
USAGE
For quick and reproducible sorting of wood chips into classes.
DEVICE DESCRIPTION

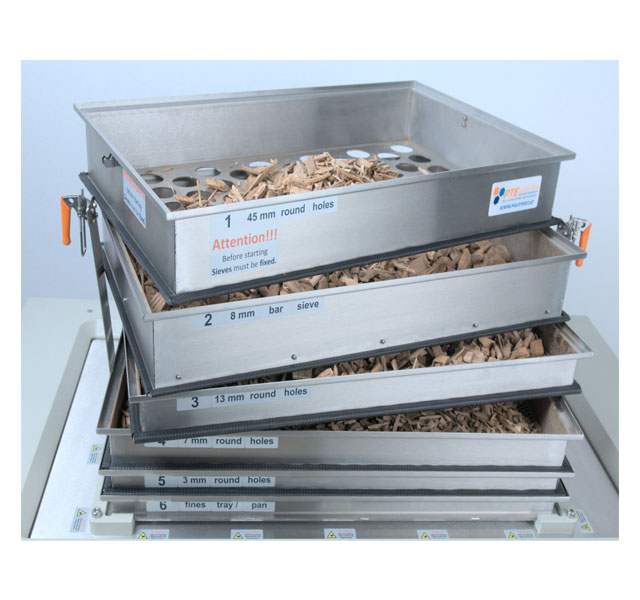

The Chip Classifier is made from a sturdy heavy metal base, with motor and control panel and integrated timer. A sieve set is mounted onto a moveable base plate, which is driven by a strong motor. The single trays, made of premium lightweight aluminum, are set on top of each other and clamped together with a quick clamping device. The movement is 120 mm and the revolving speed is 160 cycles per minute.
Specifications
| Application | Wood chip size classification |
|---|
Models
| Code | Device |
|---|---|
| P.100.SCAN 4001 | Device with sieve set acc. SCAN CM 40:01 (see P.100.Z1) |
| P.100.TAPPI UM21 | Device with sieve set acc. TAPPI UM 21 (see P.100.Z2) |
| P.100.SCAN 4792 | Device with sieve set acc. SCAN CM 47:92 (see P.100.Z3) |
Applicable standards
SCAN CM 40:01; TAPPI UM 21; SCAN CM 47:92
