Box Compression Tester (BCT)
Determines the compressive strength of corrugated boxes and cartons under controlled loading.
Full Description
BCT
CODE: E.212.XXX
USAGE
To carry out compression tests on corrugated boxes and other types of packaging with the product inside.
DEVICE DESCRIPTION
The Box Compression Tester is built into a sturdy base frame in which two pressure plates are mounted. The upper plate can be used fixated and parallel to the bottom plate or can be tilted via four fixation levers. There are three sensors under the lower plate which measure the force and break of the box. The device is operated via the touch panel and adjustable limit switches on the front.
FEATURES
- sturdy base frame
- 3 electronic load cells under the bottom plate
- electronic deformation transducer
- guiding of the upper plate done by 4 cylindric column guides and linear bearings with very low friction
- 2 fixed safety stroke limits
- 2 adjustable moveable safety stroke limits
- 2 spindles with low-friction ball circulation
- safety switch easy-accessible on the front
- servo motor & reduction gear to achieve stable speeds in full
- electronic & physical protection installations
- graphical display of test results
- statistics like mean value, standard deviation, max. and min. values
- configurable parameters of force, extension and speed
- RS-232 interface
Specifications
| Application | Corrugated box / carton compression |
|---|
Models
| Code | Plate size |
|---|---|
| E.212.808 | 800 x 800 x 800 mm |
| E.212.810 | 800 x 1000 x 800 mm |
| E.212.1100 | 1000 x 1000 x 1000 mm |
| E.212.1125 | 1250 x 1000 x 1250 mm |
Applicable standards
DIN EN 22872; ISO 12048; TAPPI T804; UNE 57163/5; FEFCO N°50; AFNOR H13-001
More from PTE Pulp Test Equipment GmbH
View all PTE Pulp Test Equipment GmbH products →
AT 1000 wear parts set
for (original Einlehner) abrasion tester
Abrasion Tester AT 1000 TS (Einlehner)
Einlehner abrasion tester for determining the abrasiveness of pulp and stock suspensions.
Spectrophotometer — Brightness & Colour Meter
Measures brightness and colour of pulp, paper and board samples for quality control.

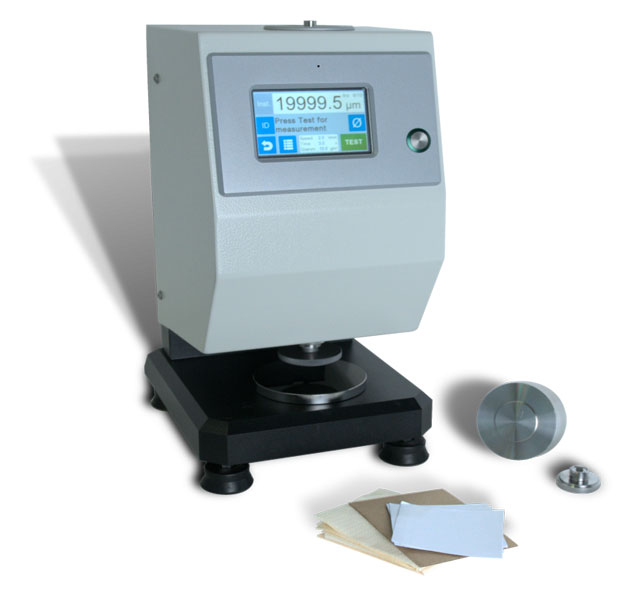

UNIVERSAL MICROMETER
FOR PAPER, TISSUE, BOARD OR LEATHER USAGE To measure the thickness of paper, tissue, board or leather.

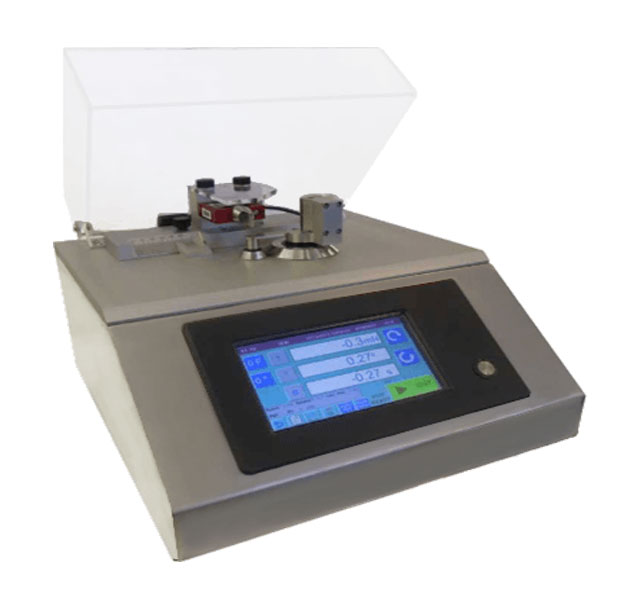

BENDING STIFFNESS TESTER
To determine the bending resistance and stiffness of paper and paperboard.
Bendtsen Tester
Measures paper roughness and air permeability using the Bendtsen method.
Double Seam Tester
Double folding strength test
Burst Tester
Measures the bursting strength of paper and board under controlled hydraulic pressure.
STATIC FRICTION TESTER
To measure the static friction between 2 materials in 2 directions.

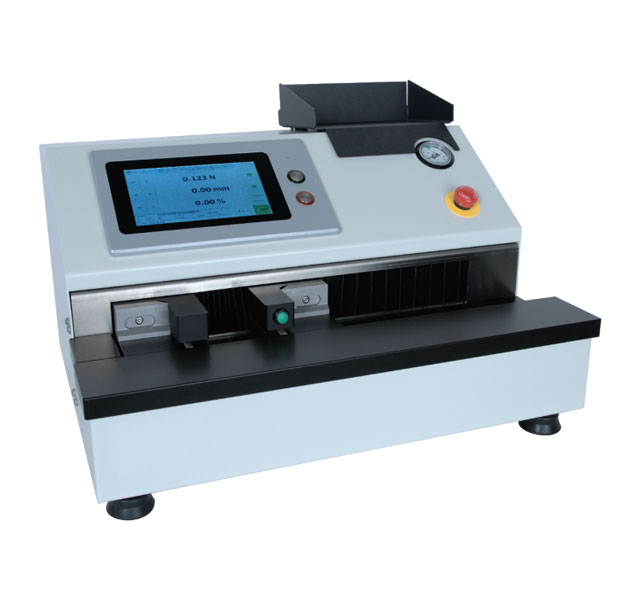

TENSILE TESTER HORIZONTAL
To determine the tensile resistance in dry or wet state, elongation and tensile energy absorption (TEA) in paper or…

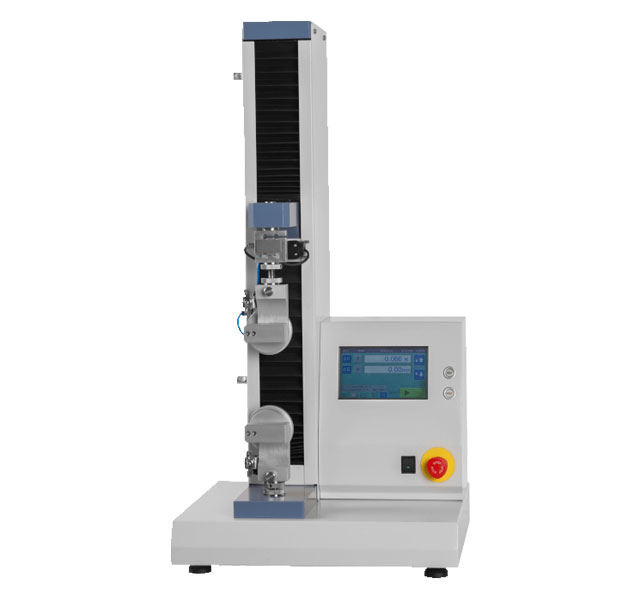

TENSILE TESTER_VERTICAL
To determine the force, tensile resistance, elongation and tensile energy absorption (TEA) in paper, board, tissue or…

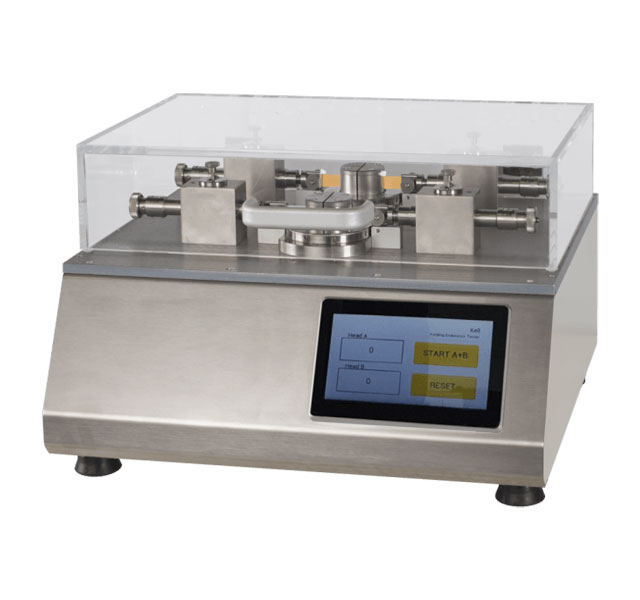

FOLDING ENDURANCE TESTER
