Full Description
FIBER CLASSIFIER
CODE: P.503.XXX
USAGE
To determine the fiber length of pulp by classification.
DEVICE DESCRIPTION

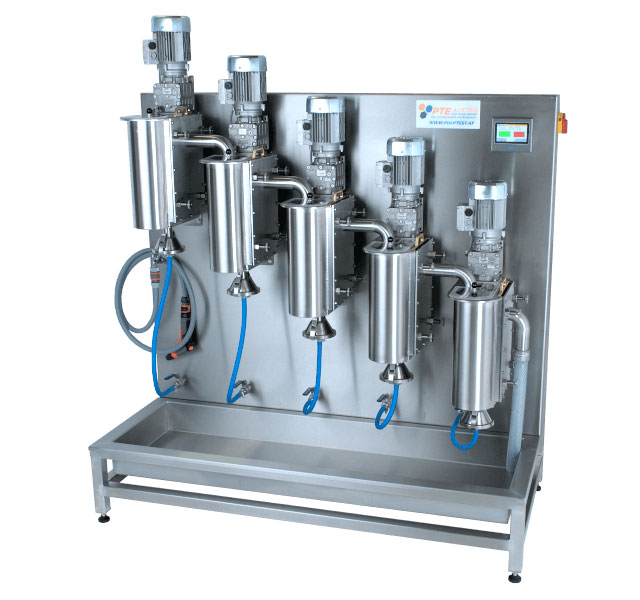

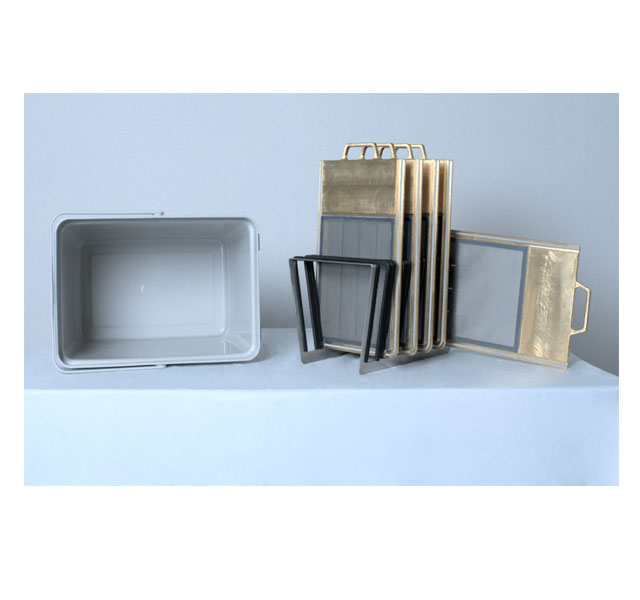

Depending on the individual set-up the fiber classifier holds up to five containers on the front side mounted in different heights. The changeable screens are held by especially developed screen holders with quick release for easy insertion and removal of the screens. Each unit is equipped with an agitator and an overflow which leads the suspension to the next container. The time can be set individually. The waterflow is regulated according to the standard being applied. The device can easily be rinsed due to the integrated water hose.
FEATURES
* top quality and manufacturing
* sturdy construction entirely made of corrosion resistant materials

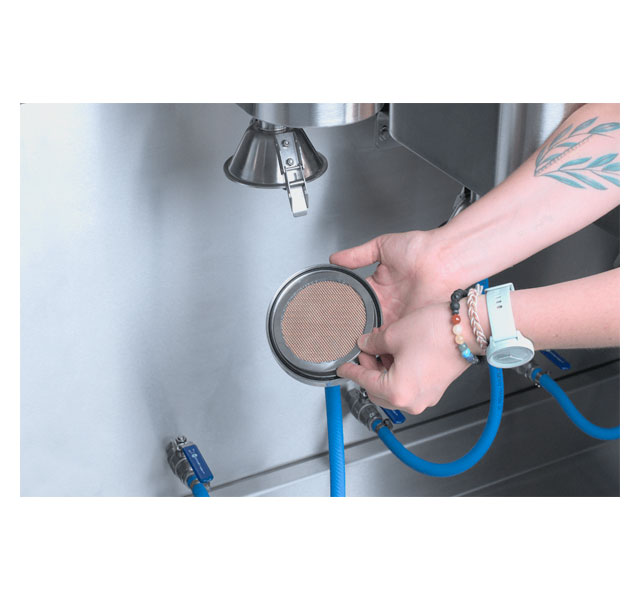

* quick release of filters and screens for easy changing and replacing
* built-in water hose for rinsing and cleaning
* high quality suction pump and agitation devices
* easy operating due to fully automatized classifying procedure
* special stirrer (580 rpm)
Models
| Code | Classification units |
|---|---|
| P.503.3 | Bauer McNett with 3 units |
| P.503.4 | Bauer McNett with 4 units |
| P.503.5 | Bauer McNett with 5 units |
| P.503.3S15 | Bauer McNett with 3 units and Somerville 0.15 mm screen |
| P.503.4S15 | Bauer McNett with 4 units and Somerville 0.15 mm screen |
| P.503.5S15 | Bauer McNett with 5 units and Somerville 0.15 mm screen |
Applicable standards
TAPPI T233; SCAN M6; PAPTAC C5V
