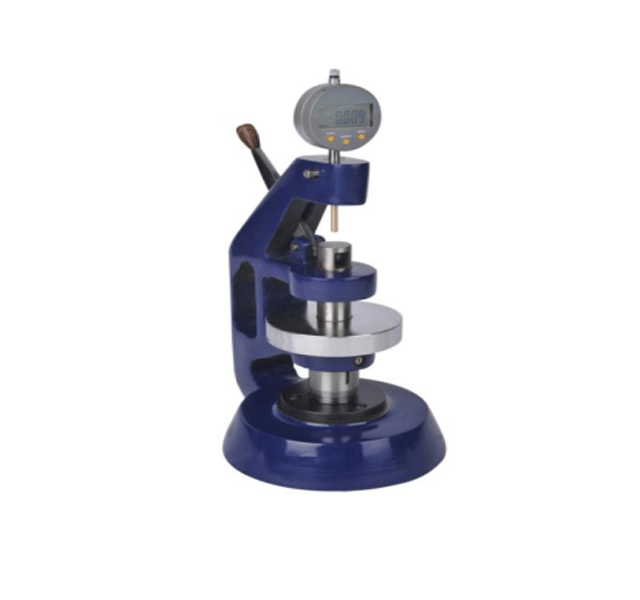

TST_03 Thickness Tester
TST_03 Thickness Tester is professionally applied to testing the thickness of paper specimens.
Full Description
TST_03 Thickness Tester
TST_03 Thickness Tester is professionally applied to testing the thickness of paper specimens.
CHARACTERISTICS
- Manual operation; Small and light; convenient to move;
- Digital display and pointer display can be selected;
- 0.001mm and 0.01 accuracy can be selected.
APPLICATION
It is used to test thickness of plane sheet samples, widely used in paper, board and other sheet material industry.
TECHNICAL INDEXES
- Test Range 0-3mm
- Contact Area 2±0.05cm
- Contact Pressure 100±10kPa
- Scale Division Value 0.01mm
- Repeatability ±2.5µm (or ±0.5%)
- Instrument Size 240×160×120(mm)
- Weight 2.5kg
Applicable standards
ISO 534 Paper and board _ Determination of thickness, density and specific volume, ISO 438 Paper _ Determination of bulking thickness and apparent density.
