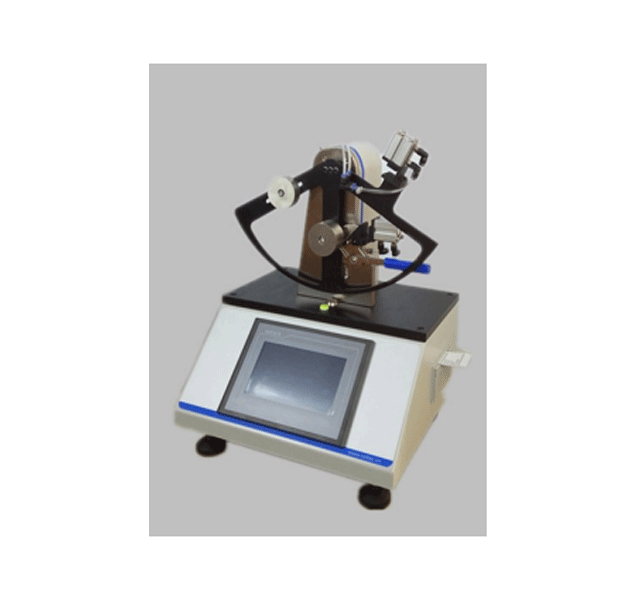

TGT_01 Tearing Tester
TGT_01 Tearing Tester is applicable in the tearing test of films, sheets, flexible PVC, PVDC, waterproof films, woven materials, polypropylene, polyester, paper, cardboard, textile and non-woven, etc.
Full Description
TGT_01 Tearing Tester
TGT_01 Tearing Tester is applicable in the tearing test of films, sheets, flexible PVC, PVDC, waterproof films, woven materials, polypropylene, polyester, paper, cardboard, textile and non-woven, etc.
PRINCIPLE
Lift the pendulum up to certain height, enable it to have a certain potential energy, pendulum tears the specimen while swinging down, computer calculates the decreasing energy caused by tearing so as to obtain the needed force for tearing.
CHARACTERISTICS
- PLC control and touch screen operation;
- Automatic and electronic measurement;
- Pneumatic specimen clamping and pendulum releasing;
- Rapid force range selection;
- Multiple capacities of pendulum;
- Multi-testing units;
TECHNICAL INDEXES
- Pendulum Capacities: 200gf, (400gf, 800gf, 1600gf, 3200gf, 6400gf)
- Gas Source Pressure: 0.6MPa (users provide gas source themselves)
- Gas Inlet: 4mm polyurethane pipe
- Dimensions: 480mm(L) x 380 mm(B) x 560mm(H)
- Power: AC 220V 50Hz
- Net weight: 23.5kg
Applicable standards
ASTM D1922, ASTM D1424, ASTM D689, TAPPI T414, ISO 6383, ISO 1974
