Gravure QC
Gravure QC enables precise inspection of gravure cylinders for quality control and optimal printing/engraving.
Full Description
Gravure QC enables precise inspection of gravure cylinders for quality control and optimal printing/engraving.

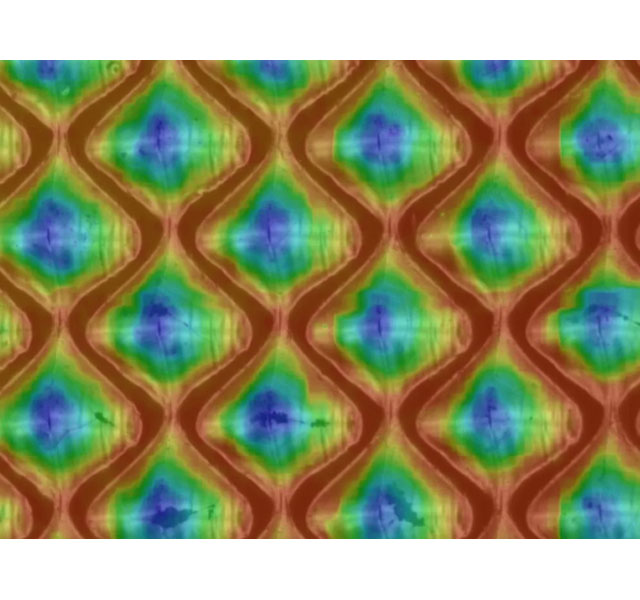

Gravure QC is purpose-built for cylinder quality control, giving printers and engravers precise, in-house insight into volume, depth, and cell geometry. It supports both mechanical and laser engraving, tracking shape, angles, and consistency to ensure every cylinder meets spec.
Printers can measure ink volume, compare cylinder condition before and after refurbishment, and plan replacements with confidence. Whether managing wear or confirming engraving quality, Gravure QC delivers the data to keep gravure print sharp, efficient, and consistent.
| Troika Management System Track everything. Miss nothing. Gravure QC connects directly to the Troika Management System , logging each scan to build a full record of volume, depth, and wear over time. You get a clear, reliable view of every cylinder in your inventory. With TMS, it’s easy to track cond | |
| Intaglio Flat, deep, or detailed. Measured with ease. Intaglio support is built to handle the full range of gravure and intaglio engraving types, including mechanical, chemical, and laser methods. It adjusts scan settings automatically to capture accurate depth and volume data from flat-bottomed che | |
| Stylus Measurement Engraving starts here. Trust the angle. The stylus angle tool makes it easy to inspect engraving styluses for both angle and condition. With support for OHIO, HELL, and MDC types, it provides a clear view of the stylus tip and delivers precise angle readings to within ±0.1°. Ideal |
