Flexoplate QC
Flexoplate QC provides precise inspection and measurement of flexographic plates, improving ink transfer and minimising waste
Full Description
Flexoplate QC provides precise inspection and measurement of flexographic plates, improving ink transfer and minimising waste
Flexo QC gives printers fast, accurate insight into plate condition and print readiness. It automatically measures X, Y, and Z dimensions, screen count, dot percentage, relief depth, angles, and compression, turning each scan into usable data.
With clean visuals and intuitive tools, it shows how each plate will perform on press, helping teams set up faster and avoid issues before they start. The software simulates compression and highlights key variations in dot shape and relief, all without complex setup or adjustments.
Flexo QC gives you the confidence to run tighter, reduce variation, and keep quality consistent.
| Translucent and Reflective Plate Analysis Clear plates. Clear results. For translucent and reflective plates, 2D analysis makes checking screen count and dot percentage straightforward. A single snapshot is all it takes, just click on two adjacent dots and the software does the rest. You can measure | |

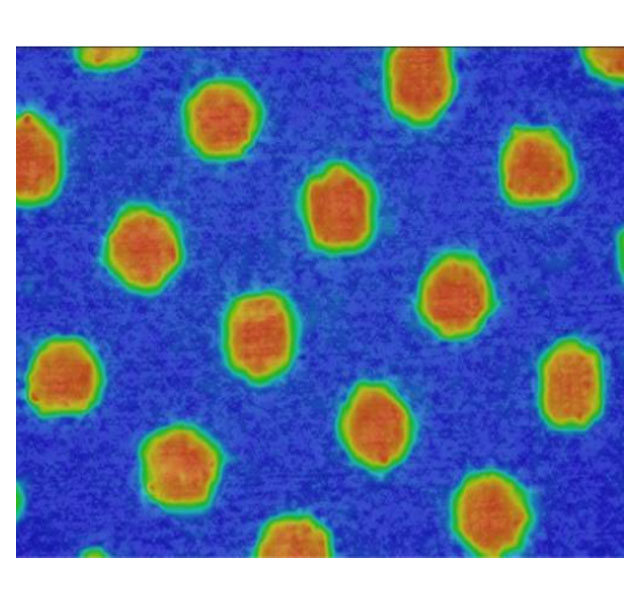

| Elastomer and Letterpress Plate Analysis Dark plates. No problem. For opaque plates like letterpress and black elastomer, traditional imaging falls short. That’s why the system uses full 3D data, slicing below the surface to reveal dots that can’t be seen clearly from above. It measures shape, relie |
