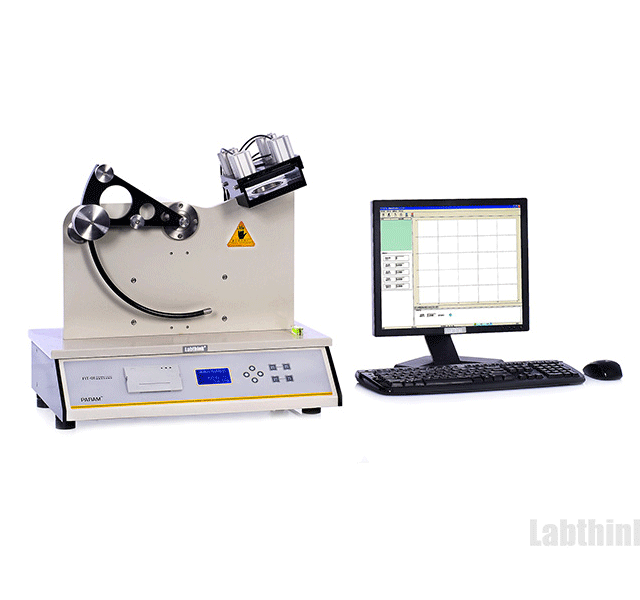

FIT 01 Film Pendulum Impact Tester
FIT-01 can be used to determine impact resistance properties of pendulum of plastic films, sheets, composite films, aluminum foils and other materials in accordance with ASTM D3420.
Full Description
FIT-01 can be used to determine impact resistance properties of pendulum of plastic films, sheets, composite films, aluminum foils and other materials in accordance with ASTM D3420.
FIT-01 Film Pendulum Impact Tester is professionally applicable to the determination of impact resistance properties of pendulum of plastic films, sheets, composite films, aluminum foils and other materials.
Technical Specification
| Specifications | FIT-01 Pendulum Impact Tester |
|---|---|
| Impact Energy | 1 J, 2 J, 3 J (Standard) |
| Resolution | 0.001 J |
| Impact Head Size | ?25.4 mm, ?19 mm, ?12.7 mm (Customization is available) |
| Specimen Clamp Diameter | ?89 mm, ?60 mm |
| Specimen Size | 100 mm x 100 mm or ?100 mm |
| Gas Supply Pressure | 0.6 MPa (outside of supply scope) |
| Port Size | ?6 mm PU Tubing |
| Instrument Dimension | 600 mm (L) x 390 mm (W) x 600 mm (H) |
| Power Supply | 220VAC 50Hz / 120VAC 60Hz |
| Net Weight | 64 kg |
Principle
The impact resistance of films could be obtained by measuring the energy consumed by hemispheric impact head to make films ruptured, under the certain impacting conditions.
Applications
FIT-01 Film Pendulum Impact Tester is applicable to the determination of impact resistance of:
| Basic Applications | · Including plastic films, sheets and composite films e.g. PE/PP composite films, aluminized films, aluminum plastic composite films, nylon films for food and drug packages |
| · Including paper and paper board, e.g. aluminized paper for cigarette packages and Tetra Pak materials | |
| Extended Applications | · Test range could be extended to 5J |
Features
- Adjustable range and electronic measurement support various combinations of non-standard test conditions
- Pneumatic specimen clamping, pendulum release mechanism and horizontal adjustment system effectively reduce the errors caused by manual operation
- The system provides automatic statistics of testing data for users’ convenient viewing
- The instrument is controlled by micro-computer, with LCD, menu interface and PVC operation panel.
- Supports LystemTM Lab Data Sharing System for uniform and systematic management of test results and test reports
Applicable standards
Standards This instrument conforms to various national and international standards: GB 8809-88, ASTM D3420, NF T54-116
Product video
