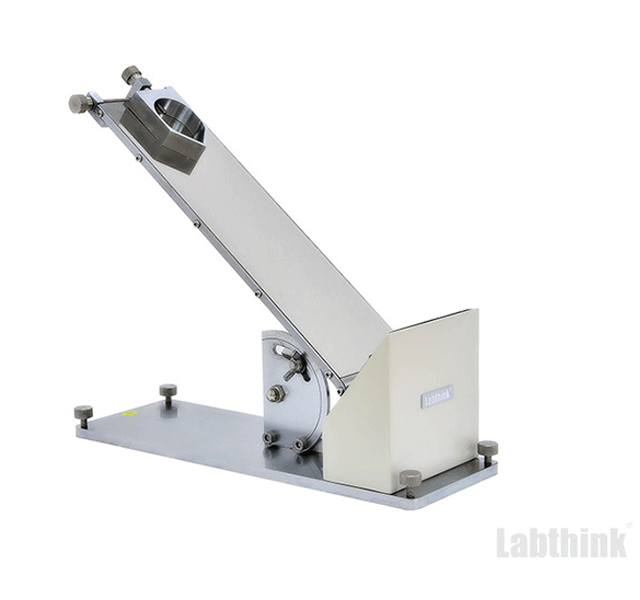

CZY GY Primary Adhesive Tester ChP

Packaging Testing Equipment

CZY-GY Primary Adhesive Tester (ChP) is designed according to adhesion test method of Chinese Pharmacopoeia and applicable to tack test of medical plasters and medical patches, etc.

Request Quote Download Datasheet

Ask a question →

Full Description

CZY-GY Primary Adhesive Tester (ChP) is designed according to adhesion test method of Chinese Pharmacopoeia and applicable to tack test of medical plasters and medical patches, etc.

Technical Specifications

Specifications	CZY-GY (ChP)
Test Angle	0 ~ 45°
Panel Width	120 mm
Test Area Width	80 mm
Standard Steel Ball	1/32” ~ 2” (46 Steel Balls)
Instrument Dimension	580 mm (L)×150 mm (W)×180 mm (H)
Net Weight	6 kg

Note 1: The parameters in the table are measured by professional operator in Labthink laboratory according to relative requirements for laboratory standard conditions.

Note 2: The described product features, test standards and applications should be in line with Technical Specifications.

Test Principle

In the determination of tack by rolling-ball method, a steel ball is released at the top of an inclined surface, then allowed to accelerate down and roll on an adhesive tape on the inclined surface. Tack is determined by the maximum size of the steel ball which can be stopped by the adhesion of the adhesive specimen.

Applications

Basic Applications

Applicable to tack test of medical plasters and patches, etc.

Features

The instrument is designed according to the inclined surface rolling ball method and can be used for tack determination of specimens
The steel balls of the instrument are designed according to national standards, which guarantees the accuracy of test data
The inclined angle of the instrument can be adjusted freely to meet customer’s requirements.
