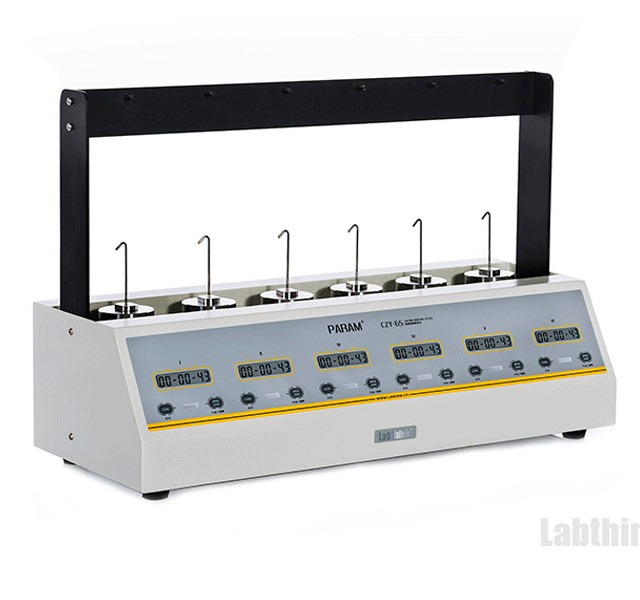

CZY 6S Lasting Adhesive Tester
CZY-6S Lasting Adhesive Tester can be used to test the holding power of pressure-sensitive tapes, medical plasters, pressure-sensitive labels and protective films, etc.
Full Description
CZY-6S Lasting Adhesive Tester can be used to test the holding power of pressure-sensitive tapes, medical plasters, pressure-sensitive labels and protective films, etc.
Technical Specifications
| Specifications | CZY-6S |
|---|---|
| Standard Roller | 2000 g ±50 g |
| Weight | 1000 g ±10 g (with load plate) |
| Test Plate | 60 mm (L) x 40 mm (W) x 1.5 mm (D) (Same as Load Plate) |
| Timing Range | 0 ~ 99 h (standard) |
| 0 ~ 9999 h (optional) | |
| Number of Stations | 6 |
| Instrument Dimension | 600 mm (L) x 240 mm (W) x 400 mm (H) |
| Power Supply | 220VAC 50Hz / 120VAC 60Hz |
| Net Weight | 20 kg |
Test Principle
The test plate with adhesive specimen is vertically hanged on the stand and its bottom is attached with a standard weight. The lasting adhesive property could be obtained by measuring the displacement of specimen on vertical test plate or the time to failure at such load.
Applications
| Basic Applications | · GB/T 4851-1998 Including various adhesives, e.g. pressure-sensitive tapes, medical patches, adhesive labels and protection films |
| Extended Applications | · Pharmacopoeia standards Medical plasters |
Features
- Standard test plates and weights ensure the accuracy of test data
- The instrument is controlled by micro-computer, with PVC operation panel, membrane switches and LCD, which is convenient for customers to operate and view test data
- Six testing stations could test groups of specimens simultaneously
- Auto timing and locking functions provide higher accuracy of test results
Applicable standards
This test instrument conforms to the standards: GB/T 4851-1998, ASTM D3654, JIS Z0237.
