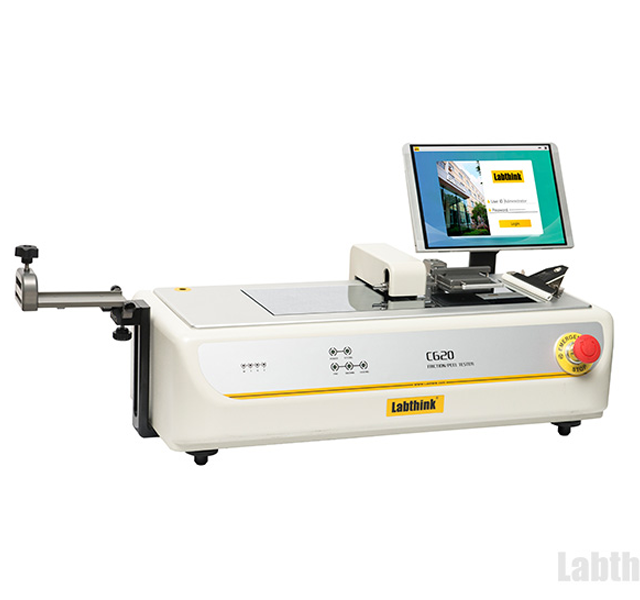

C620H Friction_Peel Tester

C620H Friction / Peel Tester can be used to test coefficient of static and kinetic friction of plastic films, sheets, foils, paper, cardboard, woven bags, fabric (fabric style test), metal-plastic composite strip/belt for communication cable, convey belt and textile, as well as peel strength test of adhesive laminated products, medical adhesive bandage, release paper and protection films.

Product Features

Innovative Design of Automatic Lifting of Sled & Upgraded Testing Accuracy and Repeatability

• Two test modes are available i.e. coefficient of friction and peel test
• Innovative automatic lifting of sled ensures accurate still time of the sled and guarantees the high repeatability of coefficient of friction test results
• The sliding plane and the sled are treated by degaussing and remanence detection which effectively reduce the system errors
• Wide range and high-precision of automatic temperature control system to support tests at different temperatures
• Force measuring system is supplied by global well-known supplier, the testing accuracy is higher than 0.5%FS, with better repeatability, multiple test ranges for choice
• Intelligent designs including position restriction, overload protection and auto reset guarantee the safe operation
• The instrument conforms to multiple ISO, ASTM and GB standards

High-end Easy-to-Use Embedded Computer Controlled System

• Large touch screen tablet is easy to view and operate
• Brand new software which is easy to use simplifies the testing operations
• The instrument supports comparative analysis of group of test data, with unit conversion features
• USB ports and net port for data transmission and external connection
• The instrument conforms to the requirements of GMP (optional)
• Labthink’s unique data security system,separates the test data from the computer to avoid the risks caused by computer virus
• Labthink’s unique DataShiledTM System for data management and connecting with information system (optional)

Applications

Basic Applications

Plastic Films and Sheets Coefficient of static and dynamic friction tests of plastic films and sheets

Paper and Paperboard Coefficient of static and dynamic friction tests of paper and paperboard

Textiles, Non-woven Fabrics and Woven Bags Coefficient of static and dynamic friction tests of textiles, non-woven fabrics and woven bags

Rubber Coefficient of static and dynamic friction tests of rubber products

Aluminum Foils and Aluminum Foil Composite Films Coefficient of static and dynamic friction tests of aluminum foils, aluminum foil composite films and other metal products

Printing Matters Coefficient of static and dynamic friction tests of printing matters

Extended Applications

High Temperature Test Coefficient of static and dynamic friction tests at higher temperature than room temperature

Wood and Flooring Coefficient of static and dynamic friction tests of wood and flooring

Photographic Films Coefficient of static and dynamic friction tests of photographic films

Screen of Mobile Phone and Leather Coefficient of static and dynamic friction tests of mobile screens against the leather products

Adhesives Peeling test of the adhesive products

Medical Adhesives Peeling test of medical adhesives e.g. adhesive bandages and plasters

Protection Films Peeling test of protection films for mobile phones or computers

Magnetic Cards Peeling test of the films and magnetic cards

Technical Specifications

Configurations

Standard Configurations

Instrument, Tablet, COF Test Fixture, Peel Test Fixture, 200g Sled, Sampling Block

Optional Parts

Standard Pressure Roller, Test Plate, Printer, Air Compressor, GMP System, DataShieldTM Note3
