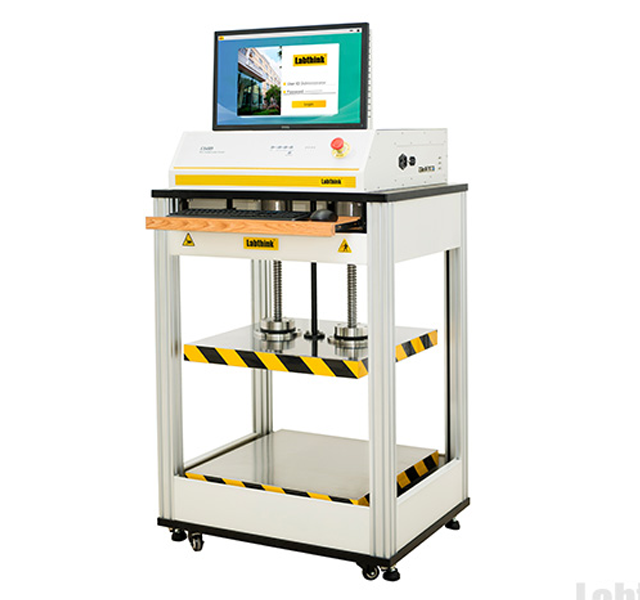

C611M Box Compression Tester

Packaging Testing Equipment

Full Description

C611M Box Compression Tester can be used to measure the compressive resistance, deformation and stacking capability of cartons, beehive crates, plastic tanks, paper tanks, paper cases, IBC tanks and other packages. The instrument supports monitoring of test information and online laboratory data management.

Product Features

Compact and integrated design and wide range power supply ?meet the testing requirements of various applications
Supports crushing force test, stacking test A and stacking test B
Dynamic digital display of test force, deformation and other test data
High performance motor and dual precision ball screws support free adjustment of test speed
Overload protection, maximum stroke protection and error alert for safe test operation
High end embedded computer-controlled system integrates the instrument with software requires no external computer
Labthink’s unique data security design improves the reliability of data management and test operation
Windows-like interfaces, keyboard and mouse, which are easy to use
Four USB ports and dual net ports for data transmission
The instrument conforms to the requirements of GMP (optional)
Labthink’s unique DataShiledTM System for data management and connecting with information system (optional)

Applications

Basic Applications

Crushing Force Test of Cartons Crushing force test of corrugated cartons and honeycomb boxes

Stacking A Test of Cartons Measuring the deformation of corrugated cartons and honeycomb boxes during stacking process

Stacking B Test of Cartons Determining whether the deformation of corrugated cartons and honeycomb boxes is qualified when specified force is applied for a certain period

Extended Applications

Crushing Force Test of Hollow Containers Crushing force test of hollow containers

Stacking A Test of Hollow Containers Measuring the deformation of hollow containers during stacking process

Stacking B Test of Hollow Containers Determining whether the deformation of hollow containers is qualified when specified force is applied for a certain period

Technical Specifications

Specifications	C611M
Load Cell Capacity	9KN (3 pcs)
Accuracy	Indicated Value ±1% (10% ~ 100% of load cell capacity) ±0.1% FS (0% ~ 10% of load cell capacity)
Force Resolution	1 N
Deformation Resolution	0.1 mm
Test Speed	0 ~ 200 mm/min (Any integer within the specified range)
Speed Accuracy	Indicated Value ±2%
Stroke	450 mm
Specimen Height	0 ~ 600 mm
Test Space	0.8 m (L) × 0.8 m (W) × 0.61 m (H)
Instrument Dimension	0.85 m (L) ×1.01 m (W) × 1.66 m (H)
Power Supply	AC220V±10% 50Hz / AC120V±10% 60Hz
Net Weight	245 kg
