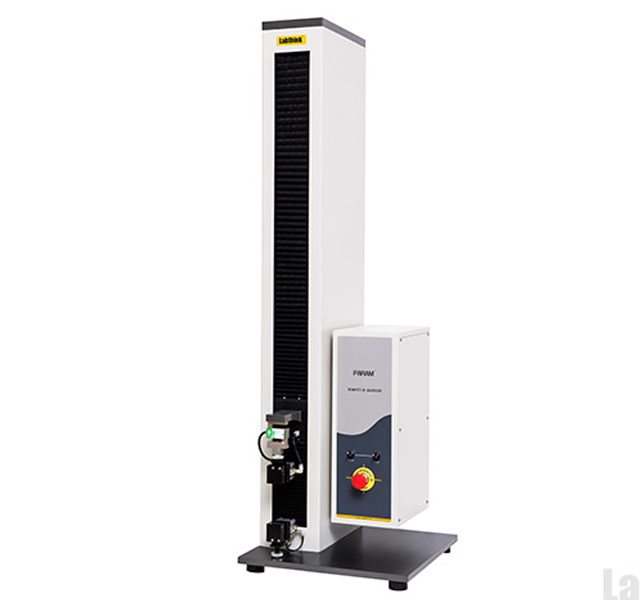

C610M Auto Tensile Tester

C610M Auto Tensile Tester is professionally applicable to measurement of tensile, peeling, deformation, tearing, heat sealing, adhesive, puncture force, opening force, pulling force and low speed unwrapping force as well as other properties of plastic films, composite materials, soft package materials, plastic flexible tube, adhesives, adhesive tapes, label stickers, medical plasters, release paper, protective films, combined caps, aluminum foils, diaphragms, back sheets, non-woven fabrics, rubber and paper, etc.

Product FeaturesNote1

Ten Test Modes to Meet Various Testing Demands

• Ten independent test modes including tensile test, peel test, tearing test, heat seal test, tensile test at fixed elongation, puncture test of rubber closure and puncture retention force test, etc. at users’ choice
• The instrument supports bidirectional testing modes, which can be used for puncture test of rubber closure and breaking force test of ampoule and test speed can be adjusted freely
• Intelligent designs of over-travel protection, overload protect and automatic position reset guarantee safe test operation of the users

Excellent Testing Mechanism & Improved Test Accuracy

• Force measuring system is supplied by top global supplier, ensures the testing accuracy of better than 0.5% of full scale and guarantees accurate test results and good repeatability. Multiple test ranges can be selected freely.
• Servo control system powered by top global supplier and the patented high-precision ball screw multi-point positioning technology provide displacement accuracy of better than 0.5% of full scale and infinitely variable speed, facilitate the instrument with simplified and stable operation.
• Global renowned brand pneumatic control system supports pneumatic specimen clamping, avoids the specimen slipping and guarantees the accuracy of test data

High-end, Secure and Easy-to-Use Embedded Computer-controlled System

• The instrument is integrated with software requiring no external computer
• The system supports displaying and comparison analysis of group of test data as well as unit conversions of test results.
• Labthink’s unique data security design by separating the test data from the computer, totally avoids the system software malfunctions caused by computer virus or faulty operations, conforms to the requirements for data traceability of China GMP (optional).
• The instrument is equipped with USB ports and Internet ports for convenient data transmission.
• Unique DataShieldTM system supports centralized management of test data and can be connected to other information management system.

Applications

C610M is equipped with more than 100 grips for tests of more than 1000 materials. Customization is available for special material tests. Examples of instrument applications:

Technical Specifications

Configurations

Standard Configurations

Instrument (with embedded software), LCD Monitor, Keyboard, Mouse, Pneumatic Sample Girps, Ink-jet Printer

Optional Parts

Standard Pressure Roller, Test Plate, Sample Cutter, Laser Printer, Air Compressor
