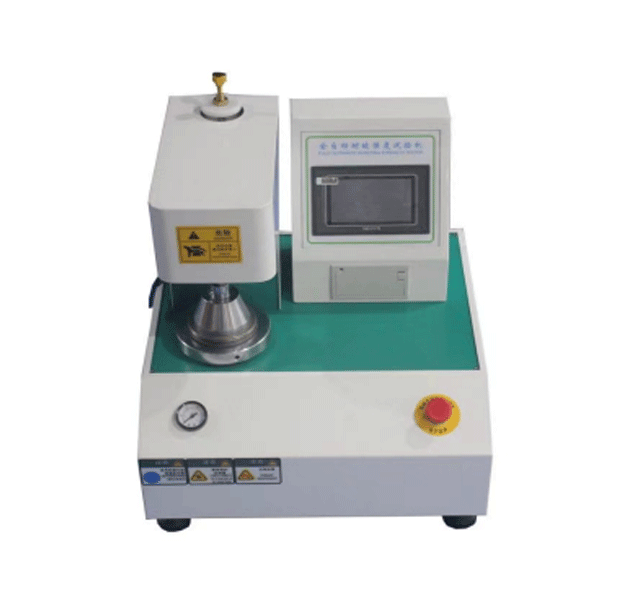

BST_02 Auto Burst Strength Tester

BST_02 Auto Burst Strength Tester

BST_02 Auto Burst Strength Testerfor cardboard is widely used in testing the burst strength of packaging materials such as ordinary paper, corrugated paper, toilet paper, wrapping paper etc. Also it can test the leather, cloth, packaging film etc. And it can effectively inspect the quality of the products.

CHARACTERISTICS

• Micro-computer control, LCD display;
• Computer control systerm, open architecture, highly automatic program, to ensure the high accuracy, and convenience to operate.
• Automatic measurement, Intelligent calculating functions.
• Equipped with micro-printer, convenient to get the test result.
• Mechatronics modern design concept, hydraulic system, compact structure, nice appearance, easy maintenance.
• Self-developed software, having automatical measure, statistics, print test results, data save function.
• Mini-printer;
• RS232 port;

TECHNICAL INDEXES

• Capacity High Pressure 0~100 Kg/ cm^2 (0.1kg/cm^2)
• Units(changeable) Kpa, psi, kg/cm^2
• Material of the Ring Stainless Steel SUS304
• Accuracy ± 0.5%
• Pressure Range 200~6000kpa
• Specimen Clamping Force >690kpa
• Oil 85% Glycerin; 15% Distilled Water
• Outside Dimension(L×W×H) 445×425×525 mm
• Sensing method Pressure Converter
• Motor Anti-vibration Motor 1/8 HP
• Opening in Upper Clamp 31.5 ± 0.05 mm Diameter
• Opening in Lower Clamp 31.5 ± 0.05 mm Diameter
