Gelbo Flex Tester
This apparatus is used to determine whether certain laminations of plastic withstand repetitive strain. By attaching sample pieces of laminated plastic to the two circular clamping disks, via hose clamps, the specimen is twisted and turned to the specific movements.
Full Description
Gelbo Flex Tester Model: G0002
This apparatus is used to determine whether certain laminations of plastic withstand repetitive strain. By attaching sample pieces of laminated plastic to the two circular clamping disks, via hose clamps, the specimen is twisted and turned to the specific movements.
This process will show a visual result of pinholding and delamination.
Applications
- Laminated plastic films
Features
- 45 cpm • Stroke : 80 or 155mm • Twist : 400° Short stroke • Twist : 440° Long stroke • Counter for oscillations • Totaliser • Home Switch • Stainless Steel Cutting Template: 280mm x 200mm • Electrical: 220/240 VAC @ 50 HZ or 110 VAC @ 60 HZ
Benifits
- Minimise end product waste • Easy to use • Fast results • Accurate
Applicable standards
Standards; • ASTM D 1709 • JIS K7124 • AS/NZS 4347.6 • GB 9639 • ISO 7765-1
More from IDM Instruments Pty Ltd
View all IDM Instruments Pty Ltd products →Crease and Stiffness Tester
Crease and stiffness testing of carton board, paper, printing and packaging materials are important measures to have…
Coefficient of Friction Tester
Coefficient of Friction Tester
Coefficient of Friction Tester Variable Speed
The C0008-VS model has all the same features as the C0008 with the addition of speed from 50 – 300mm/min using a…

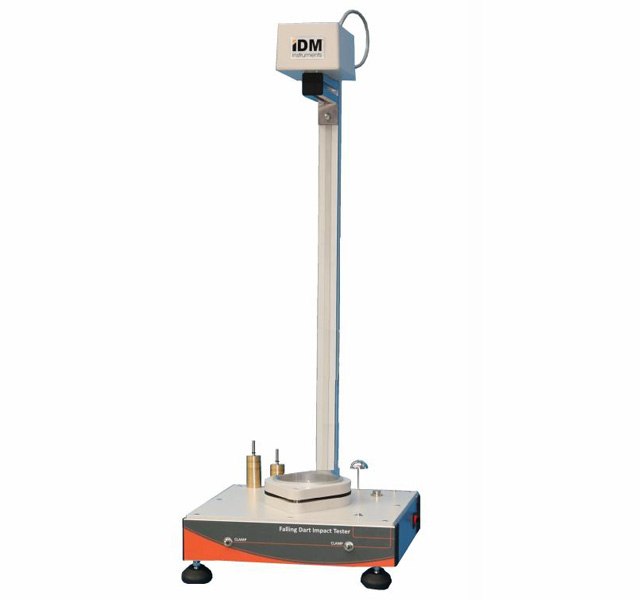

Falling Dart Impact Tester Model F0008
