Combined Hardness Tester NOVOTEST T UD3

Combined Hardness Tester NOVOTEST T-UD3

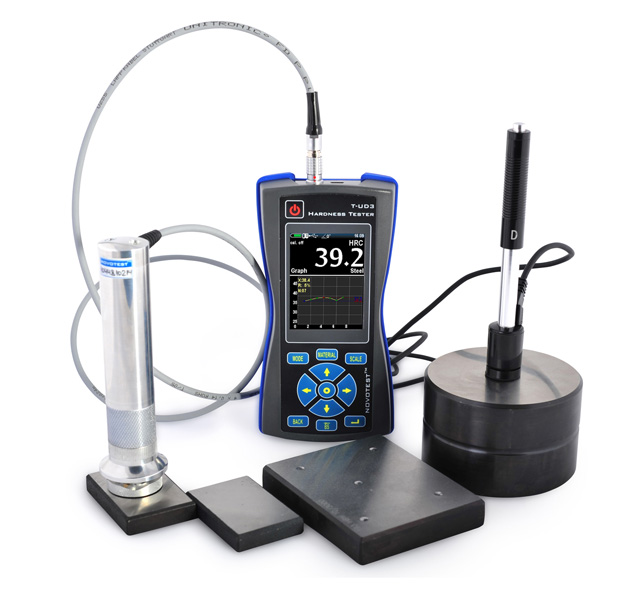

The device operates with both UCI (Ultrasonic Contact Impedance) and Leeb (dynamic) probes. User get the benefits of two methods of measurement – it is the maximum that can be obtained from portable hardness tester.

UCI method for the hardness testing

The ultrasonic contact impedance (UCI) probe is used for measuring the hardness of small items, objects with a thin wall, complex form, and to measure the hardness of surface hardened layers.

Universal portable hardness tester T-UD3 use the UCI method for the hardness measuring, which is standardized according to ASTM A 1038. This method allows user to measure very fast and easy: install the probe on tested object, press on the probe with required effort and after that save the results of the hardness value, which are showed on the display of the device. Diamond indenter has a small size that allows user to measure hardness value of all samples, which are thicker than 1 mm. The UCI method of hardness testing is the least destructive method because the hardness tester T-UD3 leaves much smaller stamps than leaves the bench hardness tester. That’s why portable hardness tester T-UD3 is very useful and universal.

Leeb method for the hardness testing

Leeb probe is used for measuring the hardness of non-ferrous metals, cast iron, coarse-grained materials, massive products etc.

Hardness tester T-UD3 also use a dynamic method of the hardness measuring – Leeb method, which is standardized according to ASTM A596. This method allows user to measure very fast and easy: install the probe, press on the probe to recharge spring, press the button on the top of the probe to make test and after that save the results of the hardness value, which are showed on the display of the device. This method is used for measuring the hardness value of non-ferrous metals, cast iron, coarse-grained materials, massive products etc. (with weigh more than 5 kg or thicker than 10 mm) also this method perfectly complements the UCI method of hardness measuring. Hardness tester T-UD3 makes automatic calculation of the hardness of a wide range of materials – steel, stainless steel, cast iron, bronze, aluminum, so that we can say that combined hardness testers is the most universal, which is needn’t in recalibration, and fully ready for operation after “getting out of the box”.

During the hardness testing, user can take a picture of the sample and print the results of hardness measurements on some place on the photo of sample.

Saved results of measurements in the device can be transmitted to a PC for creating a report of testing in a specialized program – “ARM”, which supplied with the hardness tester.

Hardness tester allows user to measure the hardness at extremely low temperatures. The real tests has been carried out at a temperature of 25°C below zero. The device is operated very easy, the measurement accuracy did not exceed the value according to standards, keyboard and display of the device allowed user to operate confidently – the difference between the operating at the indoor temperature and operating at the extreme cold was not noticeable at all!

Advantages

• Small imprint after measuring (mirror surfaces of shafts necks, blades, gear teeth, etc.)
• Measuring the hardness of the surface hardened layer
• Wide range of hardness testing
• Various measurement modes
• 88 combinations of materials and hardness scales (calibrations)
• Calibration of any scale in any range
• Convenience and ease of measurement
• Optimized number of buttons
• Large full color graphic display with bright backlighting
• Photofixing of measuring samples
• Automatic recognition of probe
• Indication of the type of connected probe
• Calibrations stored in memory of UCI probe
• Extended temperature range (frost, down to – 40°C)
• Internal memory and communication with PC
• New intuitive menu with tips on the buttons

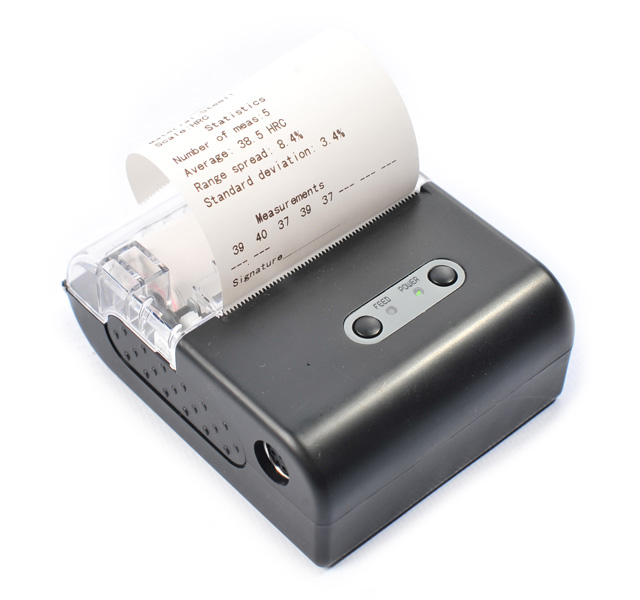

• Optional wireless mini printer
• Water resistant case

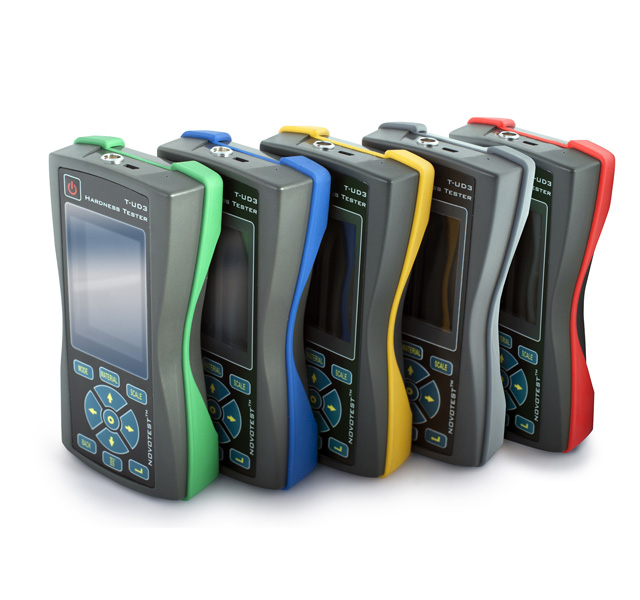

• Rubber bumper protected case
• Internal clock
• Measure hardness value of any mass products with a thickness more than 1 mm (small parts, thin-walled structures, pipes, tanks, steel sheets, articles of complex shape, hardness testing of metal coatings, etc.)
• The device has different operating modes:
• Graph – the mode of building of graph
• Histogram – the mode of building of histogram
• Statistics – the mode of statistic
• Smart – the mode of filtering of incorrect measurements
• Signal – the mode of displaying of signal (only for Leeb probe)
